Testing

Product Testing & Certifications

Solar is dedicated to providing safe, quality products to customers and our in-house test labs offer the unique opportunity to execute tests quickly and efficiently with certification by nationally-recognized third parties.  Many of Solar’s products have attained Florida, Energy Star, NFRC, Miami NOA, TDI, and Acoustical credentials.

NAMI (National Accreditation & Management Institute)

Solar Innovations® uses the National Accreditation & Management Institute, or NAMI, to attest to Solar Innovations®’s Quality Assurance program.  NAMI specializes in fenestration products, which includes, but is not limited to, windows, patio doors, skylights, sidelights, entrance doors, transoms, glazing wall systems, site-built products, and insulating glass.  As a certification agency, NAMI is required to operate under ISO Guide 65 and ISO Standard 17020. Solar Innovations® is certified by the National Accreditation and Management Institute, which is ANSI and IAS accredited for both of those standards.  (*As a participant of NAMI, Solar Innovations®’s Quality Assurance Program is required to comply with ISO Guide 53.)

Note: Solar Innovations® can provide additional testing to those listed, if required. Solar can also provide simulation results or preliminary results, before actual final testing is completed. Solar Innovations® can also produce custom units to fit any rough opening provided the individual panel size approved or tested is not exceeded.

Florida Approved Products

The Florida building code, implemented in 2001, is a single statewide building system that regulates every company involved in the repair, construction, or alteration of structures.  Prompted by a series of natural disasters in the early 1990s, it replaced a complex existing system of local regulations.

Solar Innovations® product listings can be found on the Florida Building Code website: Florida Building Code Online.

HVHZ & Miami NOA

Based on the memorandum from the State of Florida Department of Community Affairs, any product listed on the Florida Building Code Online which meets the state requirements for HVHZ is approved for use in both Miami-Dade and Broward counties of Florida. This allows for HVHZ products to be used in those counties even if the product is not listed on the Miami Dade Building Code website.

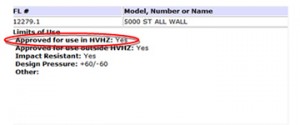

Based on the image to the right you can see that Solar’s 12279.1 “All Wall” is a viable solution in the Miami-Dade and Broward counties.

NOA Testing Screenshot

Texas Approved Products

Solar was previously added to TDI’s website for our Impact Resistant Curtain Walls and Store Front Systems, as well as our impact resistant side glazed fixed aluminum skylight/roof window.

Several Solar products have been listed on the Texas Department of Insurance website. TDI has approved several products to be installed along the Texas Gulf Coast.

Products include:

  • Flat Impact Wood Curtain Wall,
  • 102 Degree Corner Wood Curtain Wall,
  • 3×10 Aluminum Folding Glass Wall,
  • Thermally Broken Aluminum Glass Door Panels,
  • Poly Wall Twin Aluminum Window with Polycarbonate Infill,
  • 3 ½’ x 9 ½’ Aluminum Folding Glass Wall, and
  • Impact Resistant Pyramid Aluminum Fixed Skylights

Acoustically Tested Products

The most important factor to remember when discussing acoustical testing is that the acoustical values are specific to your glazing selection. The two major components of Acoustical Testing are the STC (Sound Transmission Class) and OITC (Outdoor-Indoor Transmission Class).

Glass products can be used to reduce unwanted noise in your structures, doors, windows, and skylights. The acoustical performance is influenced by the glass as well as the construction of the framing unit.

For that reason, Solar has designed a thermally-insulated, aluminum framework for our products.

Acoustic-Testing-Green-DiagramSTC – Sound Transmission Class

STC or Sound Transmission Class is the rating of how well a glazing unit can gradually reduce air-born sound. STC is widely used to rate interior and exterior partitions, doors, and windows. An STC rating can roughly reflect the reduction of decibels in noise that the unit can provide.

OITC – Outdoor-Indoor Transmission Class

OITC or Outdoor-Indoor Transmission Class indicates the amount of sound transmittance between outdoor and indoor spaces. While STC is based on a noise spectrum, OITC uses a source noise spectrum and considers environmental frequencies, such as aircraft, rail, and automotive traffic. OITC puts more emphasis on lower frequencies.

Please Note: In addition to the testing standards listed, other standards such as ISO 9001, monitor the internal Quality Management System of a manufacturer within many groups. Not only does NAMI monitor Solar Innovations®’s Internal Quality Management System, but it is also an external source of inspection for product certification to standards expressly for the type of products (fenestration) Solar Innovations® manufactures.

Solar Innovations® will continue to ensure the quality of our products through the voluntary participation in the National Accreditation and Manufacturing Institute’s program.  As a proud manufacturer of NAMI, NFRC, and ENERGY STAR qualified products, Solar Innovations® stands behind the quality of the products we deliver to customers.

Please note: testing is always being updated. If you have any questions, please contact Solar Innovations® directly for the most up-to-date information:800-618-0669

Testing Charts

Aluminum Product Testing Data and Reports
Series # Description NCTL Report Number Panel
Height
Panel
Width
Design
Pressure
Additional Credentials
SI2000 Series Terrace Doors
SI2201 Doors Terrace NCTL-110-9519-1s 81 5/8″ 36 5/8″ Florida Certified: 12278.1
G2 Folding Glass Wall Dual Wheel 3 x 8 Panel
Series # Description NCTL Report Number Panel
Height
Panel
Width
Design
Pressure
Additional Credentials
SI3350 “Split Wall” NCTL-110-15005-1 96″ 36″ ±80 FL Impact #’s12278.9 – In – Steel12278.10 – Out – Steel12278.11 – In – Aluminum12278.12 – Out – AluminumFL Non-Imp #’s12279.712279.812279.912279.10
SI3350 “All Wall” NCTL-110-14994-1
96″ 36″ ±80 FL Impact #12278.6FL Non-Imp #12279.6
SI3350 “No Post” NCTL-110-14992-1 96″ 36″ ±80 FL Impact #12278.7Fl Non-Imp #12279.5
SI3350 “Panic” NCTL-110-15135-1 96″ 36″ ±65 Added to series
SI3350 “Radius” NCTL-110-12624-1 96″ 36″ ±80 FL Impact #12278.8FL Non-Imp #12279.11
SI3350 “Radius Flush” NCTL-110-9445-1 96″ 36″ ±80 N/A
G1 Single Wheel Folding Glass Wall 3×8 Panel
Series # Description NCTL Report Number Panel
Height
Panel
Width
Design
Pressure
Additional Credentials
SI3350 “All Wall” NCTL-110-10114-1NCTL-110-10115-1NCTL-110-10116-1 96″ 35″ ±60 FL Impact #12278.412278.5
Use this system for small units (windows, openings <7ft tall, etc)
G1 Single Wheel Folding Glass Wall 3.5×6 Panel
Series # Description NCTL Report Number Panel
Height
Panel
Width
Design
Pressure
Additional Credentials
SI3350 “All Wall” NCTL-110-14076-1 70 1/8″ 40 1/2″ ±60 N/A
G1 Single Wheel Folding Glass Wall 3.5×9.5 Panel
Series # Description NCTL Report Number Panel
Height
Panel
Width
Design
Pressure
Additional Credentials
SI3350 “Split Wall” NCTL-110-12655-1 114″ 43 7/8″ ±60 FL Impact #
12278.2FL Non-Imp #
12278.3
SI3350 “Flush Sill” NCTL-110-12655-2 114″ 44 7/8″ ±60 FL Impact #
11278.2FL Non-Imp #
11278.3
G3 Dual Wheel Folding Glass Wall 3.5×9.5 Panel
Series # Description NCTL Report Number Panel
Height
Panel
Width
Design
Pressure
Additional Credentials
SI3350 “Split Wall” NCTL-110-15327-2 118″ 36 1/2″ ±70 FL Impact #13407.1 (Lite)13407.2 (In)13407.3 (Out)FL Non-Imp #
14399.3 (Lite)
14399.4 (Out)
14399.5 (In)
SI3350 “No Post” Coming Soon 118″ 36 2/16″ ±60 FL Impact #
13407.4 (Standard)13407.5 (Flush)FL Non-Imp #
14399.1 (Standard)14399.2 (Flush)
G1 Single Wall Folding Glass Wall 3×10 Panel
Series # Description NCTL Report Number Panel
Height
Panel
Width
Design
Pressure
Additional Credentials
SI3350 “Split Wall” NCTL-110-12356-1 120″ 36″ ±58 FL Impact #
12278.1FL Non-Imp #12279.412279.13
SI3350 “Swing Doors” NCTL-110-14463-1
120″ 36″ ±60 FL Impact #
12278.1FL Non-Imp#12279.412279.13
G2 Dual Wheel Folding Glass Wall 3×10 Panel
Series # Description NCTL Report Number Panel
Height
Panel
Width
Design
Pressure
Additional Credentials
SI3350 “No Post” NCTL-110-15409-1
120″ 36″ ±60 FL Impact #
N/AFL Non-Imp #
12279.12
G1 Single Wheel Folding Glass Wall 4×10 Panel
Series # Description NCTL Report Number Panel
Height
Panel
Width
Design
Pressure
Additional Credentials
SI3350 “All Wall” NCTL-110-12566-1 120″ 48″ N/A N/A
G2 Single Wheel Folding Glass Wall Irregular Panel
Series # Description NCTL Report Number Panel
Height
Panel
Width
Design
Pressure
Additional Credentials
SI3350 “Swing Door” NCTL-110-9445-1
84 1/8″ 30 1/16″ ±120 FL Impact #
N/AFL Non-Imp #
12279.3
SI3350 “Swing Door” NCTL-110-12567-1
82 1/8″ 32 15/16″ ±135 FL Impact #
N/AFL Non-Imp #
12279.3
G2 Dual Wheel Folding Glass Wall Thermal
Series # Description NCTL Report Number Panel
Height
Panel
Width
Design
Pressure
Additional Credentials
SI3350 “All Wall” NCTL-110-14592-1
74″ 36 3/8″ N/A N/A
G1 Single Wheel Folding Glass Wall Thermal
Series # Description NCTL Report Number Panel
Height
Panel
Width
Design
Pressure
Additional Credentials
SI3350 “All Wall” NCTL-110-9519-2 83 15/16″ 66 1/4″ N/A N/A
SI3350 “All Wall” NCTL-110-10850-1 74 1/2″ 33 1/2″ N/A N/A
G2 Pivot Door 5×8 Panel
Series # Description NCTL Report Number Panel
Height
Panel
Width
Design
Pressure
Additional Credentials
SI3350P “Pivot Door” NCTL-110-12566-1 100.875″ 62.5625″ ‘+150-120 Throwbolt
±45 No Throwbolt
FL Non-Imp #
12279.15
G2 Stacking Glass Wall
Series # Description NCTL Report Number Panel
Height
Panel
Width
Design
Pressure
Additional Credentials
SI3350S “Stack Wall” NCTL-110-12568-1 100.875″ 62.5625″ ±60 FL Non-Imp #
12279.14
SI4000 Series Polycarbonate Products
Series # Description NCTL Report Number Panel
Height
Panel
Width
Design
Pressure
Additional Credentials
SI4306 60mm Poly Skylite NCTL-110-12568-2 99 1/4″ 99 1/4″ ±60psf Florida Certified: 13895.1
Impact Tested
SI4308 Translucent Panel System Modular NCTL-110-12568-1 99 1/4″ 99 1/4″ ±60psf Florida Certified: 13895.2
SI4308 Translucent Panel System Modular NCTL-110-12568-2 99 1/4″ 99 1/4″ ±60psf Florida Certified: 13895.1
Impact Tested
SI4308 Translucent Panel System Modular NCTL110-12668-2s
NCTL110-12668-1s
80″ 80″
SI5000 Series Glass Structures
Solar Innovations, Inc. Curtain Wall system with a standard configuration is limited to 12psf water. Additional configurations may be available depending on your structure design and engineering up to 20psf.
Series # Description NCTL Report Number Panel
Height
Panel
Width
Design
Pressure
Additional Credentials
SI5200 Curtain Wall Series NFRC Certified
SI5200 2″ sloped/vertical tube system NCTL-110-11054-1 99″ 51″ Florida Certified: 11260.1
11260.2
SI5200 2″ sloped/vertical tube system NCTL-110-11054-2 99″ 51″ Florida Certified: 11260.1
11260.2
SI5200 2″ sloped/vertical tube system NCTL-110-11054-3 99″ 51″ Florida Certified: 11260.1
11260.2
SI5200 2″ sloped/vertical tube system NCTL-110-11054-4 99″ 51″ Florida Certified: 11260.1
11260.2
SI5200 2″ sloped/vertical tube system NCTL-110-11054-5 99″ 51″ ±60psf Florida Certified: 11260.1
11260.2
Impact Tested
SI5200 2″ sloped/vertical tube system NCTL-110-11054-6 99″ 51″ ±60psf Florida Certified: 11260.1
11260.2
Impact Tested
SI5200 2″ sloped/vertical tube system NCTL-110-11054-7 99″ 51″ Florida Certified: 11260.1
11260.2
SI5200 2″ sloped/vertical tube system NCTL-110-11055-1 99″ 51″ ±60psf Impact Tested
SI5200 2″ sloped/vertical tube system NCTL-110-10138-2s 72″ 48″
SI5250W 2.5″ wood system NCTL-110-12880-01 78.74″ 78.74″
SI5250W 2.5″ wood system NCTL-110-12404-1 58 1/4″ 58 1/4″ +40
-45
Florida Certified: 13582.1
SI5250W 2.5″ wood system NCTL-110-12404-2 130″ 127 1/4″ +40
-45
Florida Certified: 13582.2
SI5250W 2.5″ wood system NCTL-110-12404-3 58 1/4″ 58 1/4″ ±50psf Florida Certified: 13582.1
13582.2
Impact Tested
SI5250W 2.5″ wood system NCTL-110-11055-7 99″ 51″ ±60psf Florida Certified: 13582.1
Impact Tested
SI5250W 2.5″ wood system NCTL-110-11055-6 99″ 51″ Impact Tested
SI5250W 2.5″ wood system NCTL-110-11055-5 99″ 51″ Impact Tested
SI5250W 2.5″ wood system NCTL-110-11055-4 99″ 51″
SI5250W 2.5″ wood system NCTL-110-11055-3 99″ 51″
SI5250W 2.5″ wood system NCTL-110-11055-2 99″ 51″
SI5250W 2.5″ wood system NCTL-110-13134-1 ±40psf
SI5250W 2.5″ wood system NCTL-110-12881-1s 79″ 79″
SI5306 3″ sloped/vertical tube system NCTL-110-9901-1 84 1/2″ 84 1/4″ ±20psf
±40psf
±80psf
SI5306 3″ sloped/vertical tube system NCTL-110-11306-1 147 3/4″ 99 1/4″ Florida Certified: 11259.1
SI5600 Skylight Variable Pitch, Welded Curb NCTL-110-11306-2 147 3/4″ 99 1/4″ ±65psf Impact Tested
SI5800 Skylight Fixed Pitch, Welded Curb NCTL-110-9647-1 86 1/4″ 86 1/4″ ±40psf
±80psf
Florida Certified: 11259.2
SI5800 Skylight Fixed Pitch, Welded Curb NCTL-110-9647-2 86 1/4″ 86 1/4″
SI5900 Skylight Flat Welded Curb NCTL-110-10138-1s 72″ 48″
SI5900 Skylight Flat Welded Curb NCTL-110-11305-1s 98″ 50″ ±40psf
±75psf
Florida Certified: 11259.2
SI5900 Skylight Flat Welded Curb NCTL-110-11305-2 Impact Tested
SI7000 Series Windows
Series # Description NCTL Report Number Panel
Height
Panel
Width
Design
Pressure
Additional Credentials
SI7202 Window Projected NCTL-110-9531-3s
SI7202 Window Projected NCTL-110-9531-4s
SI7202 Window Projected NCTL-110-9531-1
SI7251 European System NCTL-110-12031-1s ±60psf
SI72551 Euro-Window Energy Star Certified
SI7256 Lift and Slide Operable Door Acoustically Test #
B3272.01-113-11
SI7400 Mulled Window System Energy Star Certified
SI8000 Series Sliding Glass Doors
Series # Description NCTL Report Number Panel
Height
Panel
Width
Design
Pressure
Additional Credentials
SI8201HP Sliding System Multi Track NCTL-110-10818-2 96″ 48 1/8″ ±60psf Florida Certified: 12280.1
Impact Tested
SI8500 Sliding System Dual Track NCTL-110-10836-01 78.74″ 78.74″ NFRC Certified
Energy Star Certified
SI8500 Sliding System Dual Track NCTL-110-10819-1s 93 1/4″ 61 3/4″ ±40psf
SI8500 Sliding System Dual Track NCTL-110-10837-1s 79″ 79″ Energy Star Certified
SI8600 G3 Sliding Glass Door Acoustical Test #
C2184.01-113-11
Vinyl Product Testing Data and Reports
Series Operation Frame Test Type Testing Protocol Class Passed Test Report Report #
Awning
4500 Awning EU Frame 76mm, T94 Sash: 1524×813 (60″x32″) Structural AAMA 101 ’97 Class (HC), DP (100) Yes 61095.01-122-47 SYS 61095.01-122-47
4500 Awning NA Frame, T94 Sash: 1524×813 (60″x32″) Structural AAMA 101 ’05 Class (HC), DP (100) Yes 79882.01-109-47-r0 79882.01-109-47
Configuration : Bi-Fold ‎(1)
4500 Bi-Fold EU Frame, Medium Z & T Sash: 3747×2438 (148″x96″) Structural NAFS ’08 Class (LC), DP (25) No 4500_Bi-fold_NAFS_LC25_B7323 01-109-44-R0 7323.01-109-44
Configuration : Fixed ‎(17)
4500 Fixed NA Frame Acoustic ASTM E 90 STC 39 for 1-3/8″ glass : STC 40 for 1-5/16 No 4500 Fixed STC 40 A1834.01-113-11-r0 1834.01-113-11
4500 Fixed NA Frame, Internally & externally glazed for use with door: 1219×2489 (48″x98″) Impact AAMA 101 & ASTM E 1996, ASTM E 1886 Large Missile & Cycling DP+/-65 No 4500_FX_Test Report_AAMA 4500 FX AAMA
4500 Fixed NA Frame, Internally & externally glazed for use with door: 1219×2489 (48″x98″) Impact TAS 201, 202, 203 Large Missile & Cycling DP+/-65 No 4500_FX_Test Report_TAS 4500 FX TAS
4500 Fixed EU Frame 76mm: 1829×1829 (72″x72″) Structural AAMA 101 ’97 Class (HC), DP (100) Yes 60580.01-122-47 SYS 60580.01-122-47
4500 Fixed NA Frame: 1524×1829 (60″x72″) Structural AAMA 101 ’05 Class (HC), DP (80) Yes 70831.01-109-47-r0 70831.01-109-47
4500 Fixed NA Frame: 1829×1829 (72″x72″) Structural AAMA 101 ’05 Class (HC), DP (65) Yes 79880.01-109-47-r0 79880.01-109-47
4500 Fixed EU Frame: 1520×2500 (60″x99″) Structural NAFS ’08 Class (AW), DP (70) No 96123.01-109-47-R1 96123.01-109-47
4500 Fixed EU Frame: 1520×2515 (60″X99″) Structural CSA A440 ’00 FX, B7, C5/C5 No 96123.02-109-47-R1 96123.02-109-47
4500 Fixed NA Frame: 2000×2000 (79″x79″) Structural AAMA 101 ’05 Class (R), DP (55) No 4500 Fixed 96668.01-109-47-r0 96668.01-109-47
4500 Fixed NA Frame: 2000×2000 (79″x79″) Structural CSA A440 ’00 FX, B4, C5/C5 No 4500 Fixed 96668.02-109-47-r0 96668.02-109-47
4500 Fixed NA Frame: 1829×1829 (72″x72″) Structural CSA A440 ’00 FX, B7, C5 No 4500_FX_CSA A440-00_NA frame_B8186 02-109-47-r0 8186 02-109-47
4500 Fixed NA Frame: 1829×1829 (72″x72″) Structural NAFS ’08 Class (CW), DP (75) No 4500_FX_NAFS 08_NA frame_B8186 01-109-47-r0 8186 01-109-47
4500 Fixed NA Frame Thermal ’04 NFRC Simulation U-Factor 0.16-0.31 Yes 61636.01-116-45 SYS 61636.01-116-45
4500 Fixed NA Frame Thermal ’04 NFRC Hotbox U-Factor 0.26 No 94764.01-116-46-R0 (Assembly Dwgs Only) 94764.01-116-46
4500 Fixed NA Frame Thermal ’04 NFRC Simulation U-Factor 0.20-0.46 No 94763.01-116-45-R0 (Assembly Dwgs Only) 94763.01-116-45
4500 Fixed NA Frame Thermal ’10 NFRC Hot Box U-Factor 0.20 No 4500 Fixed Hot Box A5196 01-301-46-R0 (Without Dwgs) A5196.01-301-46
Configuration : Fixed and Tilt/Turn ‎(2)
4500 Fixed and Tilt/Turn NA Frame: 914×2007 (36″x79″) Blast ASTM 1642-04/GSA TS 01-03 Fixed – No Break: TT – No Hazard No 4500 Blast TT-FX_Test Report A5758.01-122-12
4500 Fixed and Tilt/Turn NA Frame: 914×2007 (36″x79″) Blast ASTM 1642-04/GSA TS 01-03 Fixed – No Hazard: TT – NO Hazard No 4500 TT – FX blast GSA report B0747-01-122-12
Configuration : Hopper ‎(3)
4500 Hopper EU Frame 76mm: 1524×813 (60″x32″) Structural AAMA 101 ’97 Class (HC), DP (100) Yes 60579.02-122-47 SYS 60579.02-122-47
4500 Hopper NA Frame: 1524×813 (60″x32″) Structural AAMA 101 ’05 Class (HC), DP (100) Yes 79881.01-109-47-r0 79881.01-109-47
4500 Hopper EU Frame, Door Z-Sash: 1524×914 (60″x36″) Structural AAMA 101 ’05 Class (AW), DP (100) No 92229.01-109-47-r0 92229.01-109-47
Configuration : In-Swing Double Door ‎(3)
4500 In-Swing Double Door NA Frame: 1829×2438 (72″x96″) Structural ASTM E 283-04, ASTM E 330-02, ASTM E 547-00 air <0.01 cfm/ft2, water 6.06 psf No 99905.01-109-47-r0 99905.01-109-47
4500 In-Swing Double Door NA Frame: 1829×2438 (72″x96″) Structural CAN/CGSB-82.1-M89 A3, B2, C5/C3 No 99905.02-109-47-r0 99905.02-109-47
4500 In-Swing Double Door NA Frame & Sill: 1829×2438 (72″x96″) Structural NAFS ’08 Class (LC), DP (40) No 4500 French Inswing Door Structural LC 99905.03-109-47-r0 99905.03-109-47
Configuration : In-Swing Single Door ‎(6)
4500 In-Swing Single Door NA Frame Acoustic ASTM E 90 ’04 STC 40, OITC 33 Yes 4500 Inswing Door STC 40 TL07-574 TL 07-574
4500 In-Swing Single Door 960mm X 2090 mm Select One NFRC U-Factor Simulations U-Factor 0.23-0.43 No C4592.01-116-45-R0 (NFRC sims ISD 0.24-0.43 121816) C4592.01-116-45
4500 In-Swing Single Door NA Frame, Sub-sill: 914×2108 (36″x83″) Structural AAMA 101 ’05 Class (LC), DP (40) No 89301.01-109-47-r0 89301.01-109-47
4500 In-Swing Single Door NA Frame, Sub-sill: 914×2108 (36″x83″) Structural CAN/CGSB-82.1-M89 A3, B2, C3/C3 No 89301.02-109-47-r0 89301.02-109-47
4500 In-Swing Single Door NA Frame, Sub-sill Thermal ’04 NFRC Hot Box U-Factor 0.25 No 91151.01-301-46-R0 91151.01-301-46
4500 In-Swing Single Door 91417.01-116-45-R0 (Assembly Dwgs Only).pdf Thermal ’04 NFRC Simulation U-Factor 0.25-0.44 No 91417.01-116-45-R0 (Assembly Dwgs Only) 91417.01-116-45
Configuration : Mulled ‎(9)
4500 Mulled Fixed over T/T over Fixed, NA Frame: 1219×3010 (48″x119″) Structural AAMA 101 ’05 Class (C), DP’s (30) & (50) No 90761.01-109-47-r0 90761.01-109-47
4500 Mulled T/T over Fixed Mulled to Fixed over Hopper, NA Frame: 1524×2438 (60″x96″) Structural AAMA 101 ’05 Class (SP), DP (60) No 92947.01-109-47-r0 92947.01-109-47
4500 Mulled FX over FX Mulled to FX over FX (Storefront), 100 x 6 steel reinf.: 2438×2769 (96″x109″) Structural ASTM E 283, ASTM E 547 & 331, ASTM E 330 Air: 0.02, water: 15.04 psf, uniform struc.: 75 psf, uniform deflect.: 50 psf No 94572.01-109-47-r0 94572.01-109-47
4500 Mulled FX over FX Mulled to FX over FX (Storefront), 100 x 6 steel reinf.: 2438×2769 (96″x109″) Structural CSA A440 ’00 FX, B7, C2/C3 No 94572.02-109-47-r0 94572.02-109-47
4500 Mulled T/T over Fixed Mulled to Fixed over Hopper, EU Frame 68: 1524×2438 (60″x96″) Structural ASTM E 283, ASTM E 547 & 331, ASTM E 330 air <0.01, water: 12.11 psf, uniform struc.: 82 psf, uniform deflect.: 55 psf No 94573.01-109-47-r0 94573.01-109-47
4500 Mulled Fixed over Hopper, EU Frame, Sash Z 74 w/ special reinforcement: 1520×2515 (60″x99″) Structural NAFS ’08 Class (AW), DP (60) No 96124.01-109-47-R0 96124.01-109-47
4500 Mulled Fixed over Hopper, EU Frame, Sash Z 74 w/ special reinforcement: 1520×2515 (60″x99″) Structural CSA A440 ’00 A3/FX, B7, C4/C4 No 96124.02-109-47-R0 96124.02-109-47
4500 Mulled Fixed/Fixed Expansion Joint: 2438×2286 (96″x90″) Structural CSA A440 ’00 FX, B5, C3 No 4500 Expansion Joint Structural CSA A9715.02-109-47-r0 9715.02-109-47
4500 Mulled Fixed/Fixed Expansion Joint: 2438×2286 (96″x90″) Structural NAFS ’08 Class (CW), DP (50) No 4500 Expansion Joint Structural NAFS A9715.01-109-47-r0 9715.01-109-47
Configuration : Out-Swing Double Door ‎(9)
4500 Out-Swing Double Door NA Frame Acoustic ASTM E 90 ’04 STC 38, OITC 31 Yes 4500 French Outswing Door STC 38 TL07-577 TL 07-577
4500 Out-Swing Double Door Dry glazed, NA Frame, w/ 1880×2489 (74″x98″) & w/o 1880×2083 (74″x82″) weld-able corner blocks Impact AAMA 101 & ASTM E 1996, ASTM E 1886 Large Missile & Cycling DP+/-65 No 4500_OFD_Test Report_AAMA 4500 OFD-AAMA
4500 Out-Swing Double Door Dry glazed, NA Frame, w/ 1880×2489 (74″x98″) & w/o 1880×2083 (74″x82″) weld-able corner blocks Impact TAS 201, 202, 203 Large Missile & Cycling DP+/-65 No 4500_OFD_Test Report_TAS 4500 OFD-TAS
4500 Out-Swing Double Door NA Frame, T118 Sash: 1829×2438 (72″x96″) Structural AAMA 101 ’97 Class (LC), DP (35) Yes 55145.01-122-47 SYS 55145.01-122-47
4500 Out-Swing Double Door 1816×2108 (72″x83″) Structural AAMA 101 ’05 Class (C), DP (50) No 4500 French Door NCTL 110 12242 1S NCTL-110-12242-1S
4500 Out-Swing Double Door NA Frame and Sill: 1829×2438 (72″x96″) Structural CAN/CGSB-82.1-M89 A3, B3, C3/C3 No O-O French Door 96669.02-109-47-r0 96669.02-109-47
4500 Out-Swing Double Door NA Frame and Sill: 1829×2438 (72″x96″) Structural ASTM E 283-04, ASTM E 330-02, ASTM E 547-00 air: < 0.01 cfm/ft2, water: 6.90 psf No O-O French Door for US 96669.01-109-47-r0 96669.01-109-47
4500 Out-Swing Double Door NA Frame, T118 Sash Thermal ’04 NFRC Hotbox U-Factor 0.33 Yes 59586.01-301-46 SYS 59586.01-301-46
4500 Out-Swing Double Door NA Frame, T118 Sash Thermal ’04 NFRC Simulation U-Factor 0.34-0.44 Yes 61633.01-116-45 SYS 61633.01-116-45
Configuration : Out-Swing Single Door ‎(8)
4500 Out-Swing Single Door NA Frame Acoustic ASTM E 90 ’04 STC 38, OITC 33 Yes 4500 Outswing Door STC 40 TL07-575 TL 07-575
4500 Out-Swing Single Door NA Frame, T118 Sash, Sub-Sill: 965×2032 (38″x80″) Structural AAMA 101 ’97 Class (LC), DP (40) Yes 55149.01-122-47 SYS 55149.01-122-47
4500 Out-Swing Single Door NA Frame, Sub-sill: 914×2108 (36″x83″) Structural AAMA 101 ’05 Class (LC), DP (80) No 93353.01-109-47-r0 93353.01-109-47
4500 Out-Swing Single Door NA Frame, Sub-sill Thermal ’04 NFRC Hot Box U-Factor 0.26 No 91152.01-301-46-R0 91152.01-301-46
4500 Out-Swing Single Door 91416.01-116-45-R0 (Assembly Dwgs Only).pdf Thermal ’04 NFRC Simulation U-Factor 0.25-0.44 No 91416.01-116-45-R0 (Assembly Dwgs Only) 91416.01-116-45
4500 Out-Swing Single Door NA Frame Thermal ’04 NFRC Simulation U-Factor 0.25-0.44 No 91416.01-116-45-R1 (Assembly Dwg Only) 91416.01-116-45
4500 Out-Swing Single Door EU Frame 959mm x 2092mm Thermal NFRC 102-2012 Hotbox U-Factor 0.24 No C4591.01-116-46-R0 (NFRC hotbox 4500 OSD 0.24 032217) C4591.01-116-46
4500 Out-Swing Single Door 960mmX2090mm NA Frame Thermal NFRC U-Factor Simulations U-Factor .25-.44 No C4590.01-116-45-R0 (NFRC sims 4500 OSD 0.25-0.44 032717) C4590.01-116-45
Configuration : Tilt/Slide Door ‎(7)
4500 Tilt/Slide Door NA Frame Acoustic ASTM E 90 ’04 STC 40, OITC 31 Yes 4500 Tilt-Slide Door STC 40 TL07-578 TL 07-578
4500 Tilt/Slide Door EU Frame 2438×2438 (96″x96″) Impact ASTM E 1886 & ASTM E 1996 Large Missle & Cycling DP +/-80 No C2187.03-301-44-r0 C2187.03-301-44-r0
4500 Tilt/Slide Door EU Frame 2438×2438 (96″x96″) Direct Set Impact TAS 201, 202, 203 Large Missle & Cycling DP+/-80 No C2187.01-301-18-r0 C2187.01-301-18
4500 Tilt/Slide Door EU Frame 2438×2438 (96″x96″) Structural AAMA/WDMA/CSA 101/I.S.2/A 440-08 Class (CW), (DP) 80 No C2187.02-301-44-r0 C2187.02-301-44
4500 Tilt/Slide Door 2419×2108 (95″x83″) Structural NAFS ’08 Class (CW), DP (55) No 4500 Tilt Slide A8465.01-109-47-r0 8465.01-109-47
4500 Tilt/Slide Door 2419×2108 (95″x83″) Structural CSA A440 ’00 A3, B5, C4 No 4500 Tilt Slide CSA A8465.02-109-47-r0 8465.02-109-47
4500 Tilt/Slide Door XX or OX 2000×2000 w/ Z74 or Z98 Thermal NFRC U-Factor Simulations U-Factor .20-.43 No C6806.01-116-45-R1 (NFRC 4500 TS sims 0.20-0.43 032117) C6806.01-116-45
Configuration : Tilt/Turn ‎(24)
4500 Tilt/Turn NA Frame Acoustic AAMA 1801 STC 39, OITC 30 Yes 54634.01-113-11 SYS 54634.01-113-11
4500 Tilt/Turn 56604.01-113-11-R0.pdf Acoustic ASTM E 90 STC 43, OITC 34 Yes 56604.01-113-11-R0 56604.01-113-11
4500 Tilt/Turn 57176.01-113-11-R0.pdf Acoustic ASTM E 90 STC 37, OITC 30 Yes 57176.01-113-11-R0 57176.01-113-11
4500 Tilt/Turn NA Frame, Glass 1-5/16″ Acoustic ASTM E 90 STC 37, OITC 28 No 4500 T-T STC 37 97200.01-113-11-r0 97200.01-113-11
4500 Tilt/Turn NA Frame Acoustic ASTM E 90 STC 38 for 1-5/16″ glass : STC 39 for 1 No 4500 T-T STC 39 A1833.01-113-11-r0 1833.01-113-11
4500 Tilt/Turn Dry glazed, NA Frame: 1118×2032 (44″x80″) Impact TAS 201, 202, 203 Large Missile & Cycling DP+/-65 No 4500 TT_Test Report_TAS 4500 TT-TAS
4500 Tilt/Turn Dry glazed, NA Frame: 1118×2032 (44″x80″) Impact AAMA 101 & ASTM E 1996, ASTM E 1886 Large Missile & Cycling DP+/-65 No 4500_TT_Test Report_AAMA 4500 TT-AAMA
4500 Tilt/Turn NA Frame: 1118×1524 (44″x60″) Structural AAMA 101 ’97 Class (R), DP (80) Yes 55150.01-122-47 SYS 55150.01-122-47
4500 Tilt/Turn NA Frame: 1000×1600 (39″x63″) Structural CSA A440 ’00 A3, B7, C5/C5 Yes AI-02578-A (Angl) Oscillo-Battant CSA PVC Rehau Industries AI-02578-A
4500 Tilt/Turn EU Frame 68mm: 1000×1600 (39″x63″) Structural AAMA 101 ’05 Class (R), DP (65) Yes 60905.01-122-47 SYS 60905.01-122-47
4500 Tilt/Turn EU Frame: 1219×1829 (48″x72″) Structural AAMA 101 ’05 Class (C), DP (90) Yes 79883.01-109-47-r0 79883.01-109-47
4500 Tilt/Turn NA Frame: 1219×1829 (48″x72″) Structural AAMA 101 ’05 Class (C), DP (90) Yes 79884.01-109-47-r0 79884.01-109-47
4500 Tilt/Turn NA Frame: 1524×2515 (60″x99″) Structural AAMA 101 ’05 Class (HC), DP (45) Yes 79884.02-109-47-r1 79884.02-109-47
4500 Tilt/Turn NA Frame: 1219×1803 (48″x71″) Structural NAFS ’08 Class (CW), DP (100) No 4500 T-T structural A9014.01-109-47-r0 9014.01-109-47
4500 Tilt/Turn NA Frame: 1219×1803 (48″x71″) Structural CSA A440 ’00 A3, B7, C5/C5 No 4500 T-T Structural A9014.02-109-47-r0 9014.02-109-47
4500 Tilt/Turn EU Frame: 1219×1803 (48″x71″) Structural CSA A440 ’00 A3, B7, C5 No 4500_TT_EU frame_CSA A440-00_A3 B7 C5_48x71 7013.02-109-47
4500 Tilt/Turn EU Frame: 1219×1803 (48″x71″) Structural NAFS ’08 Class (CW), DP (95) No 4500_TT_EU frame_NAFS-08_CW95_48x71 7013.01-109-47
4500 Tilt/Turn NA Frame Thermal ’04 NFRC Hotbox U-Factor 0.30 Yes 59587.01-301-46 SYS 59587.01-301-46
4500 Tilt/Turn NA Frame Z60 Sash Thermal ’04 NFRC Simulation U-Factor 0.21-0.32 Yes 61635.01-116-45 SYS 61635.01-116-45
4500 Tilt/Turn NA Frame Thermal ’04 NFRC Hotbox U-Factor 0.29 No 94766.01-116-46-R0 (Assembly Dwgs Only) 94766.01-116-46
4500 Tilt/Turn NA frame Thermal ’04 NFRC Simulation U-Factor 0.22-0.45 No 94765.01-116-45-R0 (Assembly Dwg Only) 94765.01-116-45
4500 Tilt/Turn NfA frame Thermal AAMA 1503-09 U-Factor 0.22 No AAMA 1503 A0708.01-301-46-R0 (Not with Drawings) 0708.01-301-46
4500 Tilt/Turn NA Frame Hotbox Rev 1: 2/27/13 Thermal NFRC 102-2010 U-Factor 0.19 No B3110.01-201-46-r1 B3110.01-201-46
4500 Tilt/Turn NA Frame Thermal ’10 NFRC Simulation U-Factor 0.22-0.44 No 4500_TT_Sims_C4087 01-116-45-R0 4087.01-116-45
Florida & HVHZ Approved Products
Florida
Florida Series Call Out Product Name 2014 Florida Approval
SI2200 & SI3300 Door Systems Terrace Doors, Pivot Doors, Folding Glass Wall Units, Stacking Glass Wall Units FL 12278.X, FL 12279.X
SI3300 Door System Folding Glass Wall FL 13407.X
SI8200 Sliding Door Series Sliding Glass Doors FL 16028.X Impact Rated
SI5600, SI5900 Skylights Skylights FL 11259.X Impact Rated
SI5000W, SI5250WHP, 2.5 UG Wood Curtain Wall, Wood Curtain Wall FL 11260R.X Impact Rated, FL 13582.X, FL14399.X
HVHZ
Solar Innovations Series # Product Description Product Model per Florida
SI3300 Door Systems Various Configurations FL 12278.X
SI3000 In/Outfold Folding Glass Wall
Panel System
FL 13407.X
SI3300 3300 Thermally Broken Aluminum In/Outfold Folding Glass Wall
3 1/2 x 9 1/2 Impact
FL 12278.1
SI3300 3300 Thermally Broken Aluminum In/Outfold Folding Glass Wall
3 1/2 x 9 1/2 Non-Impact
FL 12278.2
SI3300 SI3350 FGW 3X8 Panel No Insert Infold Impact FL 12278.4
SI3300 SI3350 FGW No Insert Outfold Impact FL 12278.5
SI3300 SI3350 FGW 3X8 Panel Outfold All Wall Impact FL 12278.6
SI3300 SI3350 FGW 3X8 Panel 90 Degree Corner No Post, Infold, Impact FL 12278.7
SI3300 SI3350 Infold Steel Reinforced FGW 3X8 Panel Impact FL 12278.9
SI3300 SI3350 Outfold Steel Reinforced FGW 3X8 Panel Impact FL 12278.1
SI3300 SI3350 Infold Aluminum Reinforced FGW 3X8 Panel Impact FL 12278.11
SI3300 SI3350 Outfold Aluminum Reinforced FGW 3X8 Panel Impact FL 12278.12
Energy Star | NFRC | Acoustically Tested Products
NFRC | Energy Star
Product Configuration NFRC Energy Star
SI8500 Sliding Door Operable Yes Yes
SI72551 Euro-Window Operable & Fixed Yes Yes
SI7400 Mulled Window System Operable & Fixed Yes Yes
SI5200W Curtain Wall Series Fixed Yes No
SI3300 Folding Glass Wall Operable Yes No
Acoustical
Product Series # Test Report Glazing Thickness Glazing Makeup STC OTC
Lift and Slide Operable Door SI7256 B3272.01-113-11 1 5/16″ 5/16″ Laminated; 11/16″ Air Space; 5/16″ Laminated 36 33
G3 Sliding Glass Door SI8600 c2184.01-113-11 1 3/8″ 1/4″ Laminated; 3/4″ Air Space; 3/8″ Laminated 42 36
