Conservatories 101

PLACEMENT CONSIDERATIONS

OVERALL AESTHETICS

Even though any two conservatories may be made of the same materials and have the same functionality, the aesthetics can be drastically different, as illustrated by the English and Contemporary conservatories. You can match your structure to your taste and style with the overall design or decorative adornments.

English

An English conservatory is the epitome of traditionally classic appearance. They are highly ornate yet functional and add charm to a home or business. English conservatories may include decorative elements such as dormers, ridge cresting, finials, grids, masonry base walls, or raised panels. Pilasters, historically-designed gutters and Palladian arches also enhance the structure’s traditional appearance on the exterior. Crown molding, bar caps in various profile options and decorative castings bring the same character into the interior space.

Contemporary

Unlike their decorative counterparts, contemporary conservatories consist of large glass areas, clean lines and a linear format. Mullions are used to allow for long projections. The conservatory’s finish can enhance the modern appearance. Popular choices include white, black, and clear anodized, which is often used in industrial settings. Stainless steel cladding can be applied directly to the aluminum frame as well. The interior of the conservatory achieves a modern flare through the use of flat rafters and commercial grade accessories.

PERFORMANCE

Thermally-Enhanced Structures

The energy efficiency of your conservatory can be greatly enhanced through the use of high-performance glazing and thermally-broken aluminum framing.

Thermal Break

A thermal break separates the aluminum and minimizes conductivity of heat and cold from the outside to the inside while ensuring the structure’s interior remains comfortable all year long. Solar Innovations^® offers two types of thermal break systems; Polyamide Strut and Pour and Debridge. In the first method, a polyamide strut is threaded into the cavity between two aluminum profiles and crimped into place. In the Pour and Debridge system, liquid polyurethane is poured into aluminum cavities that have been machined with an Azo-Brader, that allows for the polymer to mechanically lock in place. Both methods improve thermal efficiency by breaking the highly conductive properties of aluminum. Nonthermal aluminum frames should only be used for interior spaces or where thermal conductivity is not important.

Testing Results

SI5200 Lean-To Structure as manufactured by Solar Innovations^®. NCTL-110-20222-1

Air Infiltration Test (ASTM E283):

• Pressure of 1.6 psf (75 Pa): 0.06 CFM/ft² 18 (L/min)/m² infiltration.
• Pressure of 6.2 psf (300 Pa): 0.14 CFM/ft² 42 (L/min)/m² infiltration.

Air Exfiltration Test (ASTM E283/ ASTM E547):

• Pressure of 1.6 psf (75 Pa): 0.05 CFM/ft² 15 (L/min)/m² infiltration.
• Pressure of 6.2 psf (300 Pa): 0.11 CFM/ft² 33 (L/min)/m² infiltration.

Water Penetration Test (ASTM E331):

• Water pressure of 15.0 psf (718 Pa) and 5.0 (gal/h)/m² 204 (L/h)/m², no leakage.

Uniform Structural Load Test (ASTM E330):

• Positive Design Pressure: 65 psf (3112 Pa)
• Positive Design Pressure: 65 psf (3112 Pa)

Florida Product Approval: Impact FL Approval No. Pending

FOUNDATIONS

While Solar Innovations^® does not provide the foundation, we do make recommendations based on the conservatory’s use and structure type. Please consult your local code official for regulations.

Concrete Foundations

For conservatories larger than 200 square feet, a concrete slab, continuous concrete footing, or a concrete block footing is required and should extend below the frost line. Concrete block footings should extend a minimum of six inches above grade. Embedding anchor bolts into concrete is the best way to tie down the structure. It is recommended that a waterproof compound be applied as a moisture barrier and surround the foundation with insulation panels.

FLOORING

If your conservatory is to be used for plants and people, allow for drainage. A French drain can be used, but must be installed as the foundation is poured.

Concrete

Concrete can increase thermal mass storage and does not harbor mold or disease; however, it will require regular cleaning due to soil build up.

Tile

Tile is durable and easy to clean and offers many color and pattern options. Use slip resistant or textured tile to help prevent falls.

STRUCTURAL CONFIGURATIONS

Once you have decided upon the style of your conservatory, it is helpful to determine the overall shape of your structure as you begin to design your conservatory. There are six standard configurations but Solar Innovations^® will work with you to design whatever structure your plan requires.

Straight Eave, Double Pitch

Double pitch is a classic shape for conservatories and is the most common configuration for free-standing units. It provides a uniform space that is tallest at the ridge. As you determine the roof pitch, keep in mind the surrounding structures, as well as the fact that each plane of the roof can employ a different pitch.

Click here to see more photos of Straight Eave, Double Pitch Conservatories

Straight Eave, Lean-To

A straight eave, lean-to design is the most common configuration for conservatories attached to another structure. They tend to require a smaller investment of materials when compared to a double pitch, but can provide the same interior area. This configuration is an excellent option if you only have a small amount of space, though it works just as well over large spans along a building. An advantage to this shape is the solid rear wall, which can act as thermal storage for solar heat and a suitable place for shelves.

Click here to see more photos of Straight Eave, Lean-To Conservatories

Curved Eave, Double Pitch

Reminiscent of wooden conservatories of the past, a curved eave, double pitch configuration, exhibits a classic look, especially when adorned with decorative elements, such as finials and ridge cresting. The curve in the wall can begin high on the rafter to allow for taller interior elements, or low on the rafter for a more traditional look.

Click here to see more photos of Curved Eave, Double Pitch Conservatories

Curved Eave, Lean-To

Curved eave, lean-to structures have eaves that are curved and can evoke two distinct styles depending on how they are configured. Curves that begin high on the rafter tend to exhibit a more contemporary aesthetic while curves low on the rafter allow for a more traditional look.

Click here to see more photos of Curved Eave, Lean-To Conservatories

Bull Nose End

This roof design includes a double-pitch section that tapers into a nose. It is also known as a conservatory nose or Victorian-style nose. The nose typically projects half the width of the structure with six to nine segments comprising the radial shape. This feature can be utilized as a lean-to or grouped on opposite sides, creating a stand-alone octagonal structure that resembles a gazebo.

Click here to see more photos of Bull Nose End Conservatories

Hip End

In a hip end structure, all sides of the roof slope downward to the walls, usually at a gentle pitch. A hip end is easily adapted to numerous design styles. The size of the structure is typically smaller than a comparably sized gable end conservatory, which can correlate to lower heating and cooling costs. Hip end conservatories can be attached to a building or constructed as freestanding units.

Click here to see more photos of Hip End Conservatories

Dimension Definitions

STRUCTURAL ENHANCEMENTS

Structural enhancements can add architectural appeal to your conservatory. These elements often reflect traditional conservatory styles. The most commonly used units are lanterns and dormers. Both designs will enlarge the size of the conservatory and help to create a distinct design.

Dormers

Dormers project from a sloped roof, interrupting the roof line with a double-pitch sub-structure. They typically begin at the ridge line or in the middle of the roof. Multiple dormers can be used along a long span or one on each pitch of the conservatory.

Click here to see more photos of Conservatories with Dormers

Lanterns

A lantern is located atop the roof and can span the entire length of the roof or occupy only a small section. It can feature a hip end, bull nose, or double pitch configuration. Vents can be incorporated for natural air circulation. Lanterns add a decorative element, and give English character to your conservatory.

Click here to see more photos of Conservatories with Lanterns

Entryways & Vestibules

An entryway or vestibule may act as an air-lock and reduces cold air from infiltrating the conservatory. This can prevent cold shock to the plants closest to the door. An entryway or vestibule can also offer storage and increase energy efficiency.

Click here to see more photos of Conservatories with Entryways

STRUCTURAL DETAILS

The rafters used in our conservatories are available in two widths. Multiple length bars may be combined within one project to create a dynamic appearance while maintaining matching sitelines.

2″ System Rafters

2 1/2″ System Rafters

Purlins

Decorative Caps

Sills

Condensations Gutters

GLAZING

Glazing choice plays a critical role in the performance of your conservatory, and the selection is both location and design specific. Low-E coatings allow the sun’s rays to pass through the glass while reducing the amount of heat transfer. U-values measure the amount of heat transferred through glass. The lower the value, the better it insulates. The value for a typical single pane of glass starts around 6.0, whereas you can expect values of around 0.13 for insulated glass with Low-E coatings, stainless steel spacers, and argon infill. Even though Low-E coatings can reduce the amount of ultraviolet ray penetration by over 85%, we recommend using fade-resistant indoor/outdoor furniture. Solar Innovations^®’ sales designers will work with you to determine your best options.

Double and Triple Glazed Glass Specifications

Low-E Glazing

Cardinal Glass Industries

LoĒ²-272

LoĒ²-272 is the most common and has a very slight green tint and assists in regulating temperatures in a conservatory, keeping it cooler in the summer and warmer in the winter.

LoĒ-180

LoĒ-180 is an ideal choice for conservatories attempting to generate solar heat gain, particularly with cooling accessories. This glazing is popular for colder climates.

LoĒ³-340

LoĒ³-340 is used when a conservatory needs to be shaded from intense direct sunlight, protecting delicate plants like orchids. A coating is applied to clear glass, which blocks the sun and causes a soft blue tint.

LoĒ-i89

This energy-saving fourth surface, coated glass can allow for double-pane windows to meet ENERGY STAR^® guidelines. LoĒ-i89 is applied to the indoor surface, preventing heat from escaping the room and lowering U-factors.

LoĒ²-366

LoĒ³-366 is the best insulation choice. It blocks 95% of the sun’s harmful UV rays, which helps preserve the color and composition of furnishings, draperies, and wall treatments.

Vitro Architectural Glass

Solarban 60

Solarban 60 allows 70% of visible light to pass through while blocking 62% of solar energy providing year-round comfort and energy savings.

Solarban 90

Solarban 90 allows 51% of visible light to pass through while blocking 80% of solar energy providing year-round comfort and energy savings.

Solarban 70

Solarban 70’s triple silver Low-E coating allows 64% of visible light to pass through while blocking 94% of UV energy, protecting indoor fabrics.

Note: Low-E = low emission; LoE = product name or Cardinal Glass Industries

Diffused Light Glazing

To protect fragile plants, like Bonsai trees and orchids, from direct sunlight, Solar Innovations^® offers diffused daylighting solutions.

Solera^®

With an opaque white appearance, Solera^® offers greatly increased energy efficiency, thermal comfort, and glare reduction while allowing diffused soft natural light into the space.

Lumira^® Aerogel

When Lumira^®, an aerogel-filled polycarbonate, is installed, thermal ratings are increased and light transmission is decreased. At the same time, glare and sound transmission are reduced.

Thermochromic

Thermochromic glazing is a self-tinting glass technology that darkens gradually when heated by direct sunlight.

Electrochromic

Electrochromic glazing changes between clear and tinted states with the flick of a switch, reducing glare and heat but requires a power source.

Decorative Glazing

Pattern 62

Single Glue Chip

English Reeded

Acid Etched

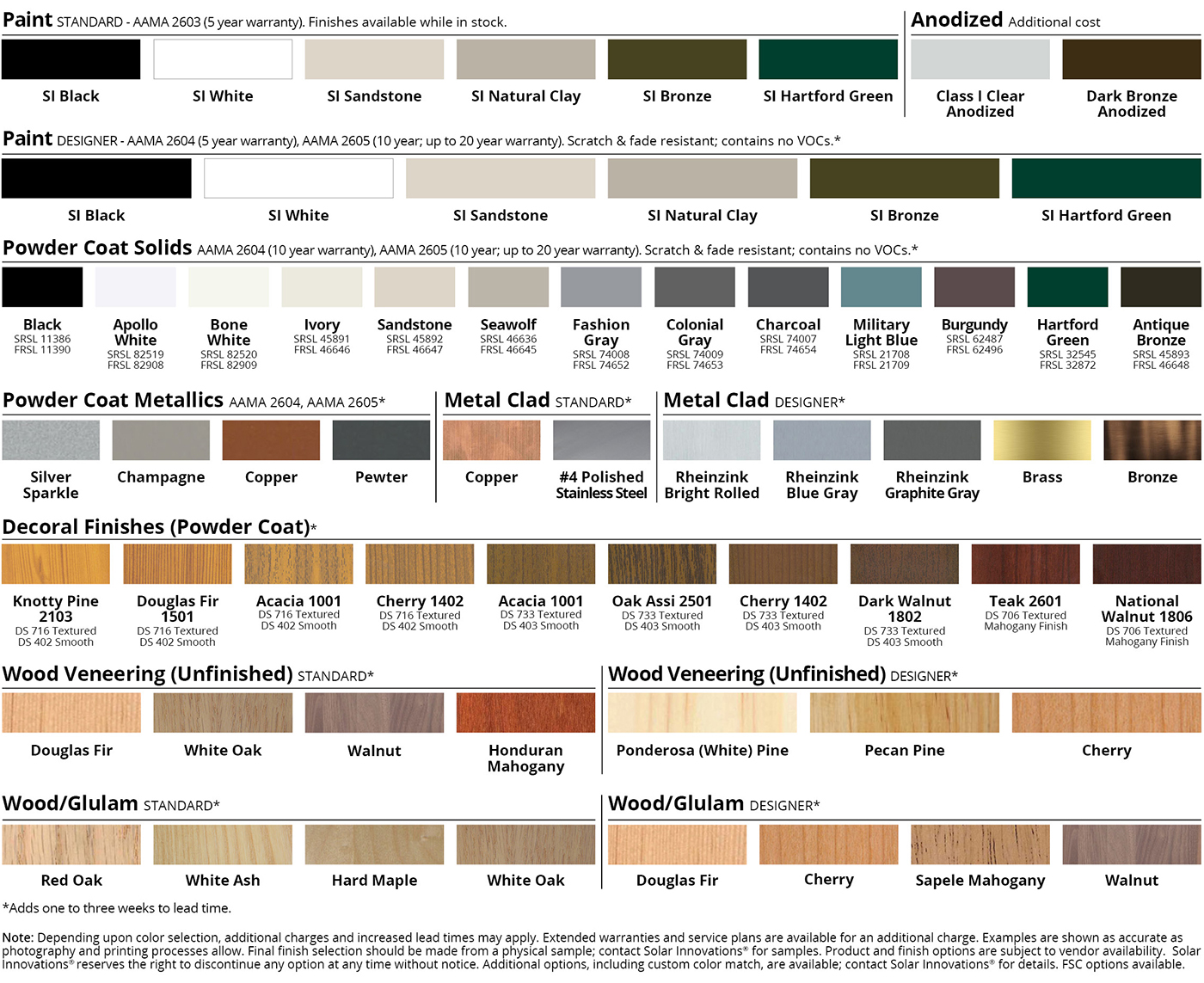

FINISHES

A painted finish is suitable for residential and light commercial projects. The finish will withstand exposure to the elements and is resistant to impact. Solar Innovations^® offers a wide variety of colors, but will also match any custom color. An anodized finish is best suited for commercial jobs, due to harsher use. Anodized finishes are also designed to withstand the corrosive effects of salt water.

Metal Cladding

Cladding can be added to the exterior of a conservatory for aesthetic purposes. Copper and bronze claddings are popular additions to historically-styled conservatories. Stainless steel cladding is appropriate for a modern conservatory or coastal applications and will not corrode.

Maintenance

A conservatory, like any other building, will require maintenance from time to time. The frame and glass will accumulate dust through the seasons, and will need to be removed. Solar Innovations^® does not recommend using harsh chemicals. A solution of water, vinegar, and dish detergent will work well to clean the glass and frame. The key is to remove any dirt build-up from the frame, which will prevent future maintenance issues. Operable window and vent tracks need to be cleaned and checked to maintain proper function. Always test your conservatory accessories, including heating, cooling, shades, operable vents, and windows as a new season approaches. Motorized operations, such as ridge vents, will need occasional lubricating.

GABLE PEDIMENTS

Gable pediments, also referred to as Palladian arches, are added to the triangular gable on a glass structure. The most common designs include a half round arch, with rays extending from the arch. The radius and number of rays are all customized to the structure. Grid work can be used to simulate true pediments or mullions.

Arched Fan Options 1

Arched Fan Option 2

Arched Fan Option 3

Open Radius

Straight Fan

Traditional Gable

Click here to see more photos of Conservatories with Gable Pediments

TRANSOMS

Use decorative panel transoms to enhance the appearance of your windows, doors, and wall glass. Transoms are available in two unique styles: etched and gridded. The panel consists of an aluminum shell (which may be painted to match the frame) and a layer of polystyrene insulation. The trim is the same grid material used in the window options.

Gridded

Etched Transoms

Pattern “A”

Pattern “B”

Pattern “C”

Pattern “D”

Pattern “E”

Pattern “F”

Pattern “G”

Pattern “H”

Pattern “I”

Pattern “J”

Pattern “K”

Pattern “L”

Click here to see more photos of Conservatories with Transoms

DECORATIVE CORNER POSTS

Decorative corner posts are one of the most classic forms of architecture, and Solar Innovations^® can create custom designed columns to fit your structure. The columns can be traditionally modeled, flat, or fluted styled after a Doric or Egyptian column, or for a modern look, contemporary styled.

Click here to see more photos of Conservatories with Decorative Corner Posts

KNEE WALLS AND BASE PANELS

Knee Walls

Knee walls (base or pony walls) are typically between 30-36 inches tall and are a common feature in conservatories. Applying a stone or brick veneer to a concrete knee wall is a cost-efficient way to achieve a classic look. Solar Innovations^® recommends insulating the knee wall to optimize energy efficiency.

Click here to see more photos of Conservatories with Knee Walls

Base Panels

Decorative base panels follow the Elizabethan form of raised grid design. We offer two standard models: a raised panel, featuring an elevated face that protrudes 1/2” from the panel base, and a smooth panel. Base panels add a classic, traditional look to structures and doors.

Click here to see more photos of Conservatories with Base Panels

Base Wall Considerations

Base walls, or knee walls, can be integrated into a structure’s design to meet a desired appearance, but can also provide practical solutions to common problems. In areas where grass needs to be mowed nearby, the base wall will provide protection from mower-thrown projectiles. In areas where snow accumulates, the base wall will provide better thermal protection when snow is piled directly against the structure. Cost savings may also be associated with base walls as it reduces frame height and the glazing area. In all instances, a footed concrete slab should be constructed as the foundation. Solar Innovations^® recommends two standard heights, dependent upon how the structure will be used and its surroundings:

Ideal height when furniture is to be positioned against the wall and provides privacy when sitting. In greenhouses, the sun can dry out plant roots on pots on the floor near the walls. This height optimizes that protection. Also, many gardeners store items under perimeter benches. The base wall keeps them out of sight from the exterior.

Proper height when no furniture or greenhouse benches are to be positioned against the walls, but still provides some protection against projectiles and snow.

Base walls can be excluded when the maximum amount of daylight is desired and the structure is not in danger of projectiles and snow is not a concern.

WINDOWS

The use of operable windows will help to create cross ventilation and natural air flow, giving you more fresh air to enjoy on beautiful days.

Casement Windows

Casement windows hinge on the left or right and open like a book. They allow for more air circulation than awning windows and can be inswing or outswing.

Pivot Windows

Pivot windows function just like pivot doors and work well when the jamb is not a suitable location to hinge.

Awning Windows

An awning window is the most common type used for ventilation. The window is hinged at the top, cranks out, and can be left open during light rain showers.

Hopper Windows

A hopper window is an operable window typically used above a door or window to ventilate the conservatory.

Tilt-Turn Windows

A tilt-turn window is a hybrid of a casement and hopper window with a single dual-operation handle.

Fixed Windows

Fixed windows do not operate and are appropriate for areas where the window is difficult to reach.

Folding Windows

A folding window can be in-fold or out-fold, top or bottom load and is the perfect solution for opening a large span.

Sliding Windows

Sliding windows glide along tracks and stack in the open position. An ideal choice for a large span, they can also be stored in a pocket for concealment.

Slide & Stack Windows

Slide & stack windows are a unique solution when a large opening is desired. They are stored in a “garage” in the open position and top hung.

DOORS

Operable doors are an attractive and functional addition to a conservatory. Our selection of terrace, French, pivot, and Dutch doors can be opened so occupants can allow fresh air to enter when the weather is pleasant.

Terrace and French Doors

Terrace doors are single swing doors, while French doors are a set of two swinging doors that operate opposite one another. Units can be hinged left or right and swing in or out. Sizes are custom designed and are constructed of the same materials of the structure.

Pivot Doors

Pivot doors have a similar operation to swing doors but are not hinged at the jamb. The pivot points are located on the head and sill and can be placed anywhere along the width of the door. Multiple pivot doors can be installed directly next to each other.

Dutch Doors

Dutch doors can be thought of as a hybrid door and window. They are swing doors that are split horizontally, allowing for operation of the top half like a window or the whole door. They can also be paired in a French door configuration.

Bifold Doors

Bifold doors, or folding glass walls, are the most versatile solution to opening a wide span. These top or bottom load doors can be setup to be in-fold or out-fold, open left, right or both directions and/or have a swing door incorporated into the design.

Sliding Doors

Sliding doors glide along tracks and stack in the open position. An ideal choice for a large span, they can also be stored in a pocket for concealment.

Slide & Stack Doors

Slide & stack doors are a unique solution when a large opening is desired. They are stored in a “garage” in the open position and top hung.

Lift-Slide Doors

Lift-slide doors are very similar to sliding glass doors in functionality and appearance, but include the added benefit of ease of operation. With the twist of the door handle, the door is lifted off the track, enabling the user to open and close the door with just one finger.

Clear Glass Wall

Bifold doors, or folding glass walls, are the most versatile solution to opening a wide span. These top or bottom load doors can be setup to be in-fold or out-fold, open left, right or both directions and/or have a swing door incorporated into the design.

HARDWARE

Solar Innovations^® offers superior quality in our hardware by utilizing stainless steel pins and extruded aluminum hinges to ensure the durability of our products. Solar Innovations^® patented recessed bumper handle provides smooth functionality and clean sitelines. Heavy saltwater finishes are available for coastal applications. We also offer a patented adjustable door catch for any of the swing doors in the product line.

Handles: Brass – Inland Applications

Aluminum – Inland Applications

Allegro (Standard)

Capri

Venice

Frankfurt

London

Solid Brass – Coastal Applications

Toronto (Standard)

Rodos

Verona

Munchen

Atlanta

Dallas

Contemporary

Closers, Catches, & Limiters

Commercial Hardware

Please Note: All hardware is subject to vendor availability. Custom finishes may be available upon request at additional lead times an/or cost. Solar Innovations reserves the right to discontinue any hardware option at any time. Please visit solarinnovations.com for additional product information.

RIDGE VENTS

Thermally enhanced aluminum ridge vents provide natural ventilation to promote plant growth in glazed structures. Ridge vents work in tandem with eave vents, creating a circulation pattern by bringing cooler air into the structure through the eave vents while the warmer air escapes through the ridge vents. This circulation will make the structure more comfortable and help reduce the spread of diseases in plants. Vents can be set to automatically open when a specified temperature is reached or close when rain or snow is detected.

The addition of ceiling fans will further circulate air and can add decorative features to your conservatory.

Features

• Thermally enhanced aluminum profile
• Glazing infills from 3⁄16” to 1”
• Accommodates any glazing option including glass, polycarbonate, acrylic, insulated metal panels
• Fixed mesh insect screen
• Standard height 27”
• Multiple bays connected together
• Manual operation with a pole operator

Options

• Rain sensors
• Wireless remote control
• Thermostatic control
• Motorized operation
• Oversized units upon request

Motorized Features

• Temperature based automated operation
• Water resistant motors
• With a weather station or sensor, vents close when rain or snow is detected
• Timed & grouped operation of multiple vents

Click here to see more photos of Conservatories with Ridge Vents

EAVE VENTS

Thermally enhanced aluminum eave vents provide natural ventilation to promote plant growth in glazed structures. Eave vents work in tandem with ridge vents, creating a circulation pattern by bringing cooler air into the structure through the eave vents while the warmer air escapes through the ridge vents. This circulation will make the structure more comfortable and help reduce the spread of diseases in plants. Vents can be set to automatically open when a specified temperature is reached or close when rain or snow is detected.

The addition of ceiling fans will further circulate air and can add decorative features to your conservatory.

Features

• Thermally enhanced aluminum profile
• Glazing infills from 3⁄16” to 1”
• Accommodates any glazing option including glass, polycarbonate, acrylic, insulated metal panels
• Fixed mesh insect screen
• Standard height 27”
• Multiple bays connected together
• Manual operation with a pole operator

Options

• Rain sensors
• Wireless remote control
• Thermostatic control
• Motorized operation
• Oversized units upon request

Motorized Features

• Temperature based automated operation
• Water resistant motors
• With a weather station or sensor, vents close when rain or snow is detected
• Timed & grouped operation of multiple vents

Click here to see more photos of Conservatories with Eave Vents

GUTTERS AND DOWNSPOUTS

Gutters and downspouts are a functional necessity to any structure yet they need not be an eyesore; they can be aesthetically appealing and double as an architectural element. Gutters are available in several styles and finishes, including traditional copper, and include downspouts in standard, round, or fluted round shapes. We specialize in restoration projects and can provide custom cast aluminum elbows, drop outs, and extruded downspouts to mimic an existing structure’s architecture.

Box

Greenhouse

Decorative

Restoration

DOWNSPOUTS

CAST ALUMINUM ELBOW

2¹/₂ INCH DOWNSPOUT

Click here to see more photos of Conservatories with Gutters and Downspouts

GRIDS

Decorative grids enhance the look of any structure, and are available in five standard types: low profile, ogee, colonial, traditional, and large-traditional. They can be formed into almost any grid style, including radius designs. Grids can be applied three ways: as interior muntins, exterior grids and Simulated Divided Lites (SDLs). Interior muntins are placed inside the airspace between two panes of glass and are typically more cost effective and easier to clean than exterior grids and SDLs. Exterior grids are placed on the interior and exterior of the window and work well with single pane glass but have drawbacks on insulated glass, as you can easily tell it is not a true divided lite because, at an angle, you can see the lack of structure between the glass panes. The solution to this is an SDL which provides an encapsulated bar within the glass, giving a better illusion of a true divided lite.

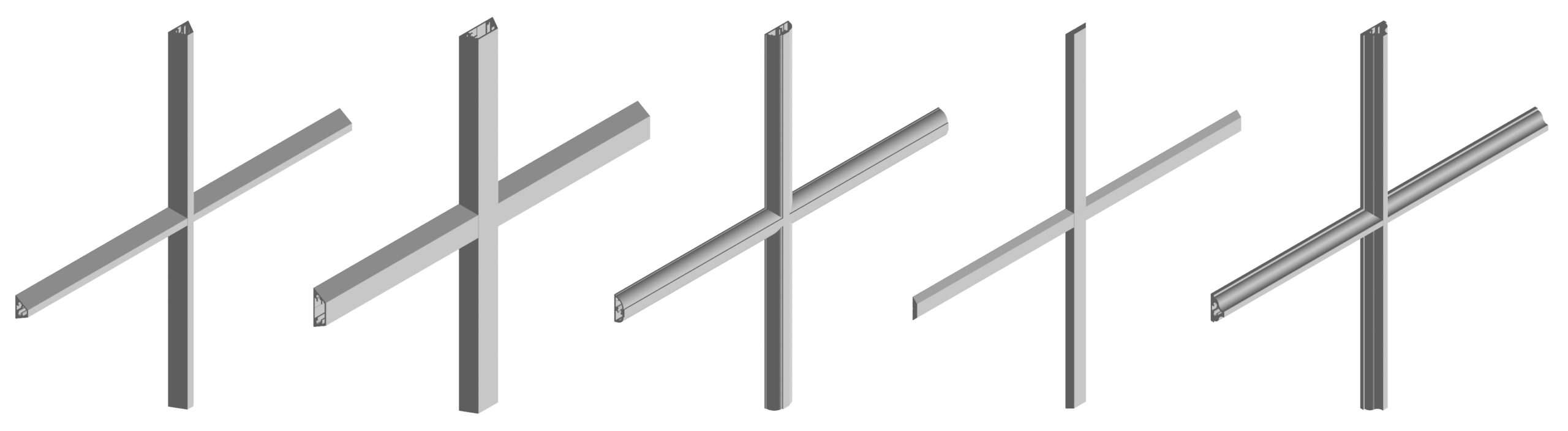

Grid Types (For windows, transoms and base panels)

Traditional

Wide Traditional

Colonial

Low Profile

Ogee

Steel Look

Grid Patterns

Traditional

Arched

Cross

Double Gothic

English

Gothic

Grid Applications

Interior Muntin

Exterior Grid (Single pane)

Exterior Grid (Insulated)

Simulated Divided Lite (SDL)

Click here to see more photos of Conservatories with Grids

MOLDING AND TRIM

Solar Innovations^® offers extruded decorative trims in durable aluminum, which will not warp, rot, rust, or require finish maintenance like traditional wooden trim. All trims are suitable for interior and exterior use.

Horizontal Molding

Vertical Molding

Beveled

Flat

1″ Flat

Concave

Ogee

Sunken Fillet

Click here to see more photos of Conservatories with Crown Molding

FINIALS

A finial, also known as a spire, is typically located at the highest peak of a structure’s roof. Dormers, lanterns, ridges, and entryways can all utilize finials. Some finials can also be used as lightning rods when properly sized, designed, and installed.

7″ Fleur De Lis

7″ Fleur De Lis with Curve

6 3⁄8″ Fleur De Lis

6 3⁄4″ Fleur De Lis

7 1⁄2″ Spire

10 3⁄4″ Spire

4 3⁄16″ Ball

Bell Cap

16″ Ball & Spire

15 1⁄2″ Ball & Spire

27″ Ball & Spire

21″ Ball & Spire

20 1⁄4″ Double Ball & Spire

25 1⁄2″ Double Ball & Spire

Click here to see more photos of Conservatories with Finials

KING POSTS

King posts act as the base for finials that attach above and below. They are typically placed at the end of a structure’s ridge cresting to create a dramatic decorative finale to the roof line.

Click here to see more photos of Conservatories with King Posts

RIDGE CRESTING

Ridge cresting is used to enhance the ridge line of a glass structure, especially in Classic English designs. Several styles of ridge cresting are available. A finial and king post is typically used to terminate the ridge cresting’s length.

Click here to see more photos of Conservatories with Ridge Cresting

RING AND COLLAR TIES

The ring and collar tie serves as a structural brace and cross tie for larger structures or free standing structures. Decorative appliqués can be added to each side of the ring for additional interest.

Appliqué

Click here to see more photos of Conservatories with Ring and Collar Ties

APPLIQUES

Decorative appliqués are elements that can add character to structures. Each cast aluminum appliqué features one of two main motifs: the rosette or the Fleur de lis.

DECORATIVE CORNERS

Decorative corners, or eave spandrels, can be found in buildings as early as ancient Rome. An eave spandrel was historically the space between an arch and a wall or column, but can also occupy the space between a wall and a squared-off opening. While eave spandrels are primarily decorative, they can also be used for shelf supports or plant hangers.

SCREENS

Screen swing doors are available for terrace, French and bifold doors. The screen door is constructed from an aluminum frame that mimics the sitelines of our glazed doors. Screens are also often incorporated into our windows and eave and ridge vents.

SHADES AND BLINDS

The summer sun may be too intense for some plants, causing them to burn or die. One way to avoid this situation is to install a shading system. Solar Innovations^® provides operable, fixed, interior, and exterior shading systems. Most of our shades and blinds are designed for high-moisture areas and are water, bacteria, and fungi resistant. Fixed shades permanently attach to the frame and are appropriate for conservatories that are used to grow delicate plants such as orchids or other tropical flowers that may be sensitive to overexposure. Operable shades allow you to control the amount of light entering the conservatory and are available in manual or motorized options.

Manual Roller Shades

Wide-Span Shades

Exterior Shades

Fixed Shades

Gravity-Fed Shades

MAINTENANCE AND SERVICE

Maintenance

A conservatory, like any other structure, will require regular maintenance. The frame and glass will accumulate dirt, which will need to be removed, preventing future maintenance issues. Solar Innovations^® does not recommend using harsh chemicals, a simple solution of water, vinegar and dish detergent will work well to clean the frame and glass. Operable window and vent tracks need to be cleaned and checked regularly to maintain proper function. Always test your conservatory accessories as a new season approaches. Motorized operations, such as ridge vents, will need occasional lubrication. Leaves and debris will also need to be removed from gutters.

Click here for more detailed information about maintenance.

Repair & Replacement Services

Our products are backed by an industry-leading warranty. In the event of a problem, our team has the technical skill and experience to evaluate your situation and determine the most effective options for repair, service, or replacement of your product. All drawings and information are saved for each project, so a preliminary site visit isn’t always required.
