Solar Innovations® is dedicated to providing safe, high-performance products to all of our customers. Every product line goes through a stringent process in our in-house testing facility, offering results quickly and efficiently. Our products are continually tested as design improvements are introduced. Certification is granted under the watchful eye of nationally-recognized laboratories. Many of our products meet Florida, NFRC, Miami NOA, TDI, and Acoustical requirements.

Solar Innovations’® Quality Assurance Program is certified by the National Accreditation & Management Institute (NAMI). NAMI specializes in fenestration products, which includes windows, patio doors, skylights, sidelights, entrance doors, transoms, glazing wall systems, site-built products, and insulating glass. NAMI is accredited by ANSI and IAS and is required to operate under ISO Guide 65 and ISO Standard 17020. As a participant of NAMI, Solar Innovations’® Quality Assurance Program is required to comply with ISO Guide 53.

Simulation results or preliminary results can be provided before actual final testing is completed. Testing can also be performed on specific custom products on a case-by-case basis. Units can be considered certified, to fit any rough opening, as long as the individual panel sizes haven’t exceeded the size of like panels that have been certified.

Please contact us if you need a specific requirement which is not listed – we are here to help.

Download our Impact Tested Products Brochure

Testing Results

NFRC Thermal Testing Table
Impact Testing Table
Acoustical Testing Table
Glass Testing Table
Polycarbonate Testing Table

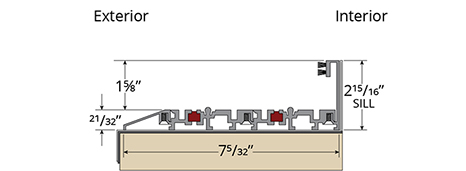

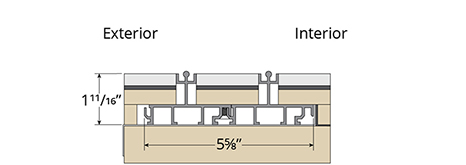

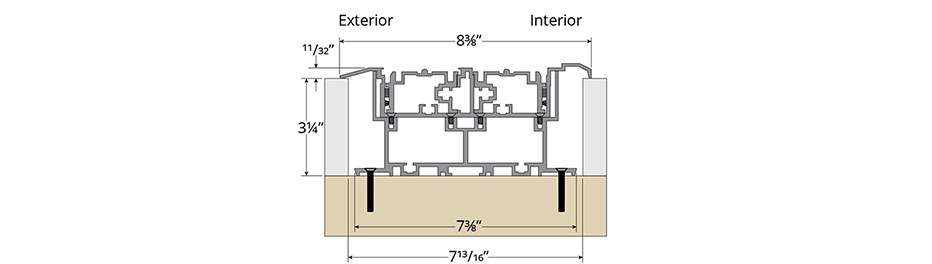

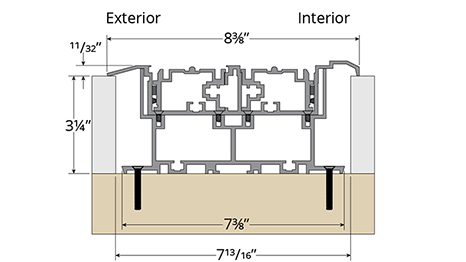

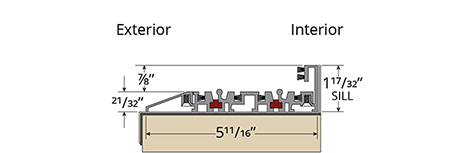

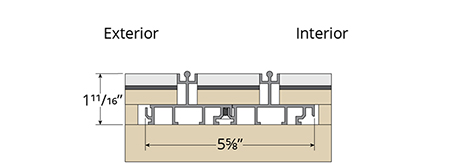

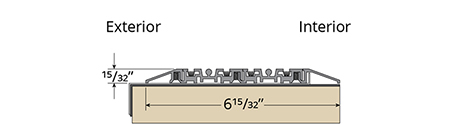

Sill Performance

In-House Thermal Simulations

Product Data
Doors
Folding Glass Walls Download PDF
Fixed Modular Terrace Door Download PDF
Lift-Slide Doors Download PDF
Pivot Door Download PDF
Slide & Stack Doors Download PDF
Sliding Glass Door Download PDF
Terrace Door Download PDF
Windows
G2 International Windows Download PDF
G3 International Windows Download PDF
Mulled Window Systems Download PDF
Curtain Wall Download PDF
Wood Curtain Wall Download PDF
Skylights
Skylights Download PDF
Walkable Skylights Download PDF
Pan Flashing Skylights Download PDF
Eave Vents Download PDF
Ridge Vents Download PDF

NFRC Thermal Testing

Product NFRC Data
Doors
SI3000 G2 Thermally Improved Folding Glass Wall NFRC Link
SI2250 G2 French Terrace Door NFRC Link
SI33350 G3 LT Aluminum Folding Glass Wall NFRC Link
SI8200 Sliding Glass Door NFRC Link
SI8600 G3 Lift & Slide NFRC Link
SI8600 G3 Sliding Door NFRC Link
SI33330 G3 Modular Terrace Door NFRC Link
Windows
SI17400 Thermally Broken Casement NFRC Link
SI7712 G2 Casement Window NFRC Link
SI7500 G2 IWS Tilt Turn Window NFRC Link
SI17400 Thermally Broken FIxed NFRC Link
SI33359 G3 Modular Terrace NFRC Link
SI5208 Aluminum Window Wall NFRC Link
SI7711 G2 International Awning NFRC Link
SI7811 G3 International Awning Window NFRC Link
SI7400 MWS Awning Window NFRC Link
SI7700 G2 International Hopper Window NFRC Link
Skylights
SI5600 Welded Curb Skylight NFRC Link
SI5206 Pan Flashing Thermally – Improved Skylight NFRC Link

Impact Testing

Download as PDF
FLORIDA APPROVAL # PRODUCT PANEL WIDTH PANEL HEIGHT DP RATING WATER PENETRATION HVHZ APPROVAL
Doors
SI3000 G2 Folding Glass Wall
FL #12278.1 90 No Post Aluminum Reinforced 3′ 8′ ±80psf Up to 12psf Yes
FL #12278.2 Outfold All wall Aluminum Reinforced 3′ 8′ ±80psf Up to 12psf Yes
FL #12278.3 Outfold Aluminum Reinforced 3′ 8′ ±80psf Up to 9psf Yes
FL #12278.4 Infold Aluminum Reinforced 3′ 8′ ±80psf Up to 9psf Yes
FL #12278.5 Outfold Not Reinforced 3′ 7’6″ ±55psf Up to 4psf No
FL #12278.7 Infold Radius Wall Aluminum Reinforced 3′ 8′ ±70psf Up to 9psf Yes
SI3000 G3 Folding Glass Wall
FL #13407.1 G3 Folding Glass Wall Outfold 3′ 10′ ±70psf Up to 10.5psf No
FL #13407.2 90° No Post — Flush Sill 3’6″ 9’6″ ±55psf Up to 9psf Yes
FL #13407.3 90° No Post — Standard Sill 3’6″ 9’6″ ±80psf Up to 9psf Yes
FL #13407.4 90° No Post — Outfold 3’6″ 9’6″ ±80psf Up to 9psf Yes
FL #13407.5 Infold 3’6″ 9’6″ ±70psf Up to 9psf Yes
FL #13407.6 Outfold 3’6″ 9’6″ ±70psf Up to 12psf Yes
FL #13407.7 Outfold Lite Rail 3’6″ 9’6″ ±50psf Up to 12psf Yes
SI8000 Sliding Glass Doors & SI8600 Lift Slide Doors
FL #16028.1 G2 Sliding Glass Door 601⁄2“ 99″ ±65psf Up to 12psf Yes
FL #17268.1 G3 Sliding Door (90° No Post) 601⁄2“ 1143⁄8“ ±60psf Up to 7.5psf No
FL #17268.3 G3 Multi-Track Sliding Glass Door 633⁄4“ 1143⁄8“ ±70psf Up to 10.6psf No
FL #17287.1 G3 Lift Slide Door 633⁄4“ 1143⁄8“ ±70psf Up to 12psf Yes
FL #28884.1 Vinyl OX or XO Sliding Glass Door 491⁄4“ 923⁄4“ ±50psf Up to 7.5psf Yes
SI2000 Swing Doors
FL #17582.3 G2 Outswing Terrace with Sidelites 3211⁄16“ 931⁄2“ ±50psf Up to 6psf No
FL #17582.4 G3 LT Outswing French 44″ 1041⁄8“ ±40psf Up to 12psf Yes
Curtain Walls
SI5100 Curtain walls
FL #18578.3 2X4 — Aluminum Fixed 60″ 90″ ±65psf Up to 12psf No
FL #18578.2 G2 HGB – Aluminum Fixed 60″ 120″ ±65psf Up to 20psf No
FL #18578.5 Butt Glazed Corner 281⁄8“ 1141⁄4“ ±60psf Up to 15psf No
Windows
SI7000 Window Systems
FL #17265.1 G2 International Awning Window 36″ 72″ ±65psf Up to 12psf No
FL #17265.2 G2 International Hopper Window 48″ 32″ ±65psf Up to 9.8psf No
FL #17266.1 G2 International Casement Window 36″ 72″ ±65psf Up to 12psf No
FL #17267.1 G2 International Fixed Window 36″ 72″ ±65psf Up to 15psf No
FL #21405.1 SI4500 Vinyl-Composite Fixed Window 36″ 48″ ±56.5psf Up to 15psf No
FL #21646.1 SI4500 Vinyl-Composite Fixed Window Varies Varies ±65psf Up to 15psf No
FL #18578.1 Mulled Fixed Window 60″ 60″ ±80psf Up to 15psf No
FL #22640.1 G2 International HP Tilt Turn Window 60″ 99″ ±60psf Up to 20psf No
Skylights
SI5200 Skylights
FL #11259.1 Flat Welded Curb Skylight 36″ 72″ ±80psf Up to 30psf Yes
FL #11259.2 Variable Pitch Welded Curb Skylight 48″ 661⁄2“ ±65psf Up to 30psf Yes
FL #11259.4 Side-Glazed Skylight 493⁄4“ 493⁄4“ ±65psf Up to 12psf No
FL #17581.3 Bi-Parting Skylight 1117⁄8“ 47″ ±45psf Up to 6.9psf No
FL #17581.1 90° Operable Skylight 865⁄16“ 6611⁄16“ ±40psf Up to 15psf No
FLORIDA APPROVAL # PRODUCT PANEL WIDTH PANEL HEIGHT DP RATING WATER PENETRATION HVHZ APPROVAL
Doors
SI3000 G2 Folding Glass Wall
FL #12278.1 90 No Post Aluminum Reinforced 3′ 8′ ±80psf Up to 12psf Yes
FL #12278.2 Outfold All wall Aluminum Reinforced 3′ 8′ ±80psf Up to 12psf Yes
FL #12278.3 Outfold Aluminum Reinforced 3′ 8′ ±80psf Up to 9psf Yes
FL #12278.4 Infold Aluminum Reinforced 3′ 8′ ±80psf Up to 9psf Yes
FL #12278.5 Outfold Not Reinforced 3′ 7’6″ ±55psf Up to 4psf No
FL #12278.7 Infold Radius Wall Aluminum Reinforced 3′ 8′ ±70psf Up to 9psf Yes
SI3000 G3 Folding Glass Wall
FL #13407.1 G3 Folding Glass Wall Outfold 3′ 10′ ±70psf Up to 10.5psf No
FL #13407.2 90° No Post — Flush Sill 3’6″ 9’6″ ±55psf Up to 9psf Yes
FL #13407.3 90° No Post — Standard Sill 3’6″ 9’6″ ±80psf Up to 9psf Yes
FL #13407.3 90° No Post — Outfold 3’6″ 9’6″ ±80psf Up to 9psf Yes
FL #13407.5 Infold 3’6″ 9’6″ ±70psf Up to 9psf Yes
FL #13407.6 Outfold 3’6″ 9’6″ ±70psf Up to 12psf Yes
FL #13407.7 Outfold Lite Rail 3’6″ 9’6″ ±50psf Up to 12psf Yes
SI8000 Sliding Glass Doors & SI8600 Lift Slide Doors
FL #16028.1 G2 Sliding Glass Door 601⁄2“ 99″ ±65psf Up to 12psf Yes
FL #17268.1 G3 Sliding Door (90° No Post) 601⁄2“ 1143⁄8“ ±60psf Up to 7.5psf No
FL #17268.3 G3 Multi-Track Sliding Glass Door 633⁄4“ 1143⁄8“ ±70psf Up to 10.6psf No
FL #17287.1 G3 Lift Slide Door 633⁄4“ 1143⁄8“ ±70psf Up to 12psf Yes
FL #28884.1 Vinyl OX or XO Sliding Glass Door 491⁄4“ 923⁄4“ ±50psf Up to 7.5psf Yes
SI2000 Swing Doors
FL #17582.3 G2 Outswing Terrace with Sidelites 3211⁄16“ 931⁄2“ ±50psf Up to 6psf No
FL #17582.4 G3 LT Outswing French 44″ 1041⁄8“ ±40psf Up to 12psf Yes
Curtain Walls
SI5100 Curtain walls
FL #18578.3 G2 HGB – Aluminum Fixed 60″ 120″ ±65psf Up to 20psf No
FL #18578.5 Butt Glazed Corner 281⁄8“ 1141⁄4“ ±60psf Up to 15psf No
Windows
SI7000 Window Systems
FL #17265.1 G2 International Awning Window 36″ 72″ ±65psf Up to 12psf No
FL #17265.2 G2 International Hopper Window 48″ 32″ ±65psf Up to 9.8psf No
FL #17266.1 G2 International Casement Window 36″ 72″ ±65psf Up to 12psf No
FL #17267.1 G2 International Fixed Window 36″ 72″ ±65psf Up to 15psf No
FL #21646.1 SI4500 Vinyl-Composite Fixed Window Varies Varies ±65psf Up to 15psf No
FL #18578.1 Mulled Fixed Window 60″ 60″ ±80psf Up to 15psf No
FL #22640.1 G2 International HP Tilt Turn Window 60″ 99″ ±60psf Up to 20psf No
Skylights
SI5200 Skylights
FL #11259.1 Flat Welded Curb Skylight 36″ 72″ ±80psf Up to 30psf Yes
FL #11259.2 Variable Pitch Welded Curb Skylight 48″ 661⁄2“ ±65psf Up to 30psf Yes
FL #11259.4 Side-Glazed Skylight 493⁄4“ 493⁄4“ ±65psf Up to 12psf No
FL #17581.3 Bi-Parting Skylight 1117⁄8“ 47″ ±45psf Up to 6.9psf No
FL #17581.1 90° Operable Skylight 865⁄16“ 6611⁄16“ ±40psf Up to 15psf No

Acoustical Testing

Download as PDF
Report Number Glass Type Product Type Panel Width Panel Height STC Rating OITC Rating
Doors
GEN 2 REGULAR THERMAL FOLDING WALL
F3179.01 11⁄8” IG (1⁄4” Annealed Laminated w/.030 Acoustical Interlayer, 1⁄2” Air, 3⁄8” Annealed Laminated w/.030 Acoustical Interlayer) – Cardinal Glass Standard Sill or Recessed Standard 447⁄8” 901⁄2” 39 32
F3179.02 11⁄8” IG (1⁄4” Annealed Laminated w/.030 Acoustical Interlayer, 1⁄2” Air, 3⁄8” Annealed Laminated w/.030 Acoustical Interlayer) – Cardinal Glass Recessed Ramp Sill or Recessed Flush Sill 447⁄8” 901⁄2” 34 29
GEN 3 LT THERMAL FOLDING WALL
F3184.01 11⁄8” IG (1⁄4” Annealed Laminated w/.030 Acoustical Interlayer, 1⁄2” Air, 3⁄8” Annealed Laminated w/.030 Acoustical Interlayer) – Cardinal Glass Recessed Ramp Sill or Recessed Flush Sill 447⁄8” 901⁄2” 38 31
F3184.02 11⁄8” IG (1⁄4” Annealed Laminated w/.030 Acoustical Interlayer, 1⁄2” Air, 3⁄8” Annealed Laminated w/.030 Acoustical Interlayer) – Cardinal Glass Standard Sill or Recessed Standard Sill 447⁄8” 901⁄2” 39 32
GEN 3 LT NARROW FOLDING GLASS WALL
L0249.02-113-11-R0 19⁄16” IG (3⁄16” Annealed Laminated w/.030 Acoustical Interlayer 3⁄16” Annealed Laminated, 3⁄4” Air, 3⁄16” Annealed Laminated w/.030 Acoustical Interlayer 3⁄16” Annealed Laminated) – Cardinal Glass Standard Sill or Recessed Standard Sill 45″ 92″ 45 35
L0249.01-113-11-R0 19⁄16” IG (3⁄16” Annealed Laminated w/.030 Acoustical Interlayer 3⁄16” Annealed Laminated, 3⁄4” Air, 3⁄16” Annealed Laminated w/.030 Acoustical Interlayer 3⁄16” Annealed Laminated) – Cardinal Glass Recessed Flush Sill 45″ 92″ 44 35
GEN 2 THERMAL SLIDING DOOR
F3159.01 1” IG (1⁄4” Tempered, 1⁄2” Air, 1⁄4” Annealed Laminated w/.030 Acoustical Interlayer) – Cardinal Glass 361⁄4” 771⁄2” 33 29
GEN 3 SLIDING DOOR
C2184.01 13⁄8” IG (1⁄4” Annealed Laminated w/.030 Acoustical Interlayer, 3⁄4” Air, 3⁄8” Annealed Laminated w/.030 Acoustical Interlayer) – Cardinal Glass 361⁄2” 765⁄8” 42 36
E3296.01 13⁄16” IG (1⁄4” Annealed Laminated w/.030 Acoustical Interlayer, 11⁄16” Air, 1⁄4” Annealed Laminated w/.030 Acoustical Interlayer – Cardinal Glass 361⁄4” 781⁄2” 38 30
GEN 3 SLIDE AND STACK WALL
L2446.03-113-11-R0 19⁄16” IG (3⁄16” Annealed Laminated w/.030 Acoustical Interlayer 3⁄16” Annealed Laminated, 3⁄4” Air, 3⁄16” Annealed Laminated w/.030 Acoustical Interlayer 3⁄16” Annealed Laminated) – Cardinal Glass Dust-Proof Floor Strike 423⁄4“ 921⁄4“ 41 32
G3 LT NARROW SLIDE AND STACK WALL
F3348.01 11⁄16” IG (1⁄4” Annealed Laminated w/.030 Acoustical Interlayer, 3⁄4” Air, 1⁄4” Annealed Laminated .030 Acoustical Interlayer) – Cardinal Glass 407⁄8” 869⁄16” 32 28
GEN 3 LIFT AND SLIDE
F3157.01A1 11⁄4” IG (1⁄4” Annealed Laminated, 3⁄4” Air, 1⁄4” Tempered) – Cardinal Glass 371⁄8” 771⁄2” 32 25
G2 TERRACE DOOR WITH SIDELITE
F3352.01 1” IG (3⁄16” Tempered, 9⁄16” Air, 1⁄4” Tempered) Door – Cardinal Glass G2 Mod TD with Sidelite 36” 96″
1” IG (1⁄4” Tempered, 9⁄16” Air, 3⁄16” Tempered) Sidelight – Cardinal Glass
G2 TERRACE DOOR
G3494.01 11⁄16” IG (3⁄16” Tempered, 7⁄16” Air, 7⁄16” Lami w/.090SGP) – Cardinal Glass G2 Mod TD 397⁄16” 8311⁄16” 37 31
G3 TERRACE DOOR
G5135.01 11⁄16” IG (3⁄16” Ann, 7⁄16 Air, 7⁄16” Lami w/.090SGP) – Cardinal Glass G3 Mod TD 471⁄4” 108” 37 31
G2 FRENCH DOOR
G3495.01 11⁄16” IG (3⁄16” Tempered, 7⁄16” Air, 7⁄16” Lami w/.090SGP) – Cardinal Glass G2 Mod French 3713⁄32” 8311⁄16” 38 31
G3 FRENCH DOOR
G5134.01 11⁄16” IG (3⁄16” Ann, 7⁄16 Air, 7⁄16” Lami w/.090SGP) – Cardinal Glass G3 Mod French 397⁄16” 8311⁄16” 37 30
Windows
G2 INTERNATIONAL HP TILT-TURN
F3242.01 1” IG (3⁄16” Tempered, 9⁄16” Air, 1⁄4” Tempered) – Cardinal Glass G2 Intl HP TnT 471⁄4” 59” 35 28
G2 INTERNATIONAL AWNING
G3481.01 1” IG (3⁄16” Tempered, 9⁄16” Air, 5⁄16” Annealed Laminated w/.090SGP) – Cardinal Glass G2 Intl Awning 591⁄8” 235⁄8” 35 28
G2 INTERNATIONAL CASEMENT
G3479.01 1” IG (3⁄16” Tempered, 9⁄16” Air, 5⁄16” Annealed Laminated w/.090SGP) – Cardinal Glass G2 Intl Casement 235⁄8” 59” 36 29
G2 INTERNATIONAL FIXED
G3478.01 1” IG (3⁄16” Tempered, 9⁄16” Air, 5⁄16” Annealed Laminated w/.090SGP) – Cardinal Glass G2 Intl Fixed 471⁄4” 59” 35 29
Vinyl Products
VINYL TILT-TURN WINDOW
E5874.01 11⁄4” IG (1⁄4” Tempered, 3⁄4” Air, 1⁄4” Tempered) – Cardinal Glass Vinyl TnT 44” 553⁄4” 33 26
VINYL TILT-TURN WINDOW WITH SIDELITE
G5129.01 1” IG (1⁄4” Annealed Laminated w/.030 Acoustical Interlayer, 1⁄2” Air,1⁄4” Annealed Laminated w/.030 Acoustical Interlayer) – Cardinal Glass Vinyl TnT w/Sidelite (Trickle Vent) 3513⁄16” 891⁄4” 35 29
VINYL TERRACE DOOR WITH SIDELITE
G5130.01D 1” IG (1⁄4” Annealed Laminated w/.030 Acoustical Interlayer, 1⁄2” Air,1⁄4” Annealed Laminated w/.030 Acoustical Interlayer) – Cardinal Glass Vinyl Terrace Door with Sidelite 3713⁄16” 701⁄2” 36 29
Aluminum Structures
CURTAIN WALL
G3482.01 11⁄16” IG (3⁄16” Tempered, 7⁄16” Air, 7⁄16” Annealed Laminated w/.090SGP) – Cardinal Glass G2 HGB 40” 80” 33 28
Wood
GEN 3 WOOD FOLDING WALL
H8180.01 11⁄16” IG (1⁄4” Tempered, 1⁄2” Air, 5⁄16” Annealed Laminated w/.060 PVB Interlayer) – Cardinal Glass Cladding – Standard or Recessed Standard Sill 25” 861⁄2” 35 30
H8180.02 11⁄16” IG (1⁄4” Tempered, 1⁄2” Air, 5⁄16” Annealed Laminated w/.060 PVB Interlayer) – Cardinal Glass No Cladding – Standard Sill or Recessed Standard Sill 25” 861⁄2” 36 31

Glass Testing

Download as PDF
Overall Unit
Thickness		 U-value R-Value Solar Heat
Gain Coefficient		 Visible Light
Transmission		 Reflectance
Out		 Reflectance
In		 UV
Transmittance
Monolithic
Clear 1/4″ 1.02 0.91 0.82 88% 8% 8% 62%
DOUBLE GLAZED Outside Lite/Inside Lite
Clear/Clear 1″ 0.46 2.17 0.78 82% 15% 15% 58%
180/Clear 1″ 0.26 3.85 0.64 79% 15% 15% 29%
272/Clear 1″ 0.25 4.00 0.41 72% 11% 12% 16%
366/Clear 1″ 0.24 4.17 0.27 65% 11% 12% 5%
340/Clear 1″ 0.25 4.00 0.18 39% 11% 13% 2%
180/i89 1″ 0.21 4.76 0.62 77% 15% 14% 27%
272/i89 1″ 0.20 5.00 0.41 70% 11% 11% 16%
366/i89 1″ 0.20 5.00 0.27 63% 11% 11% 5%
340/i89 1″ 0.20 5.00 0.17 38% 11% 12% 2%
Gray/Clear 1″ 0.45 2.22 0.60 57% 9% 13% 32%
Gray/180 1″ 0.26 3.85 0.49 53% 9% 14% 17%
Gray/272 1″ 0.25 4.00 0.38 50% 8% 9% 10%
Bronze/Clear 1″ 0.45 2.22 0.62 61% 10% 13% 31%
Bronze/180 1″ 0.26 3.85 0.61 59% 10% 14% 17%
Bronze/272 1″ 0.25 4.00 0.39 54% 8% 10% 10%
TRIPLED GLAZED Outside Lite/Middle Lite/Inside Lite
180/Clear/180 11⁄8“ 0.15 6.67 0.56 70% 20% 20% 13%
272/Clear/180 11⁄8“ 0.15 6.67 0.37 63% 15% 18% 8%
366/Clear/180 11⁄8“ 0.15 6.67 0.25 57% 14% 18% 2%
340/Clear/180 11⁄8“ 0.15 6.67 0.16 34% 13% 19% 1%

Polycarbonate Testing

Download as PDF
Product Thickness Color Light Transmission (SHGC) Structure Rib Spacing Weight (Lbs. per sq. ft.) U-Value R-Value Bending Radius STC
Thermoclear 15 5/16” (8mm) Clear 0.82 2-wall 25/64” (10mm) 0.348 0.57 1.75 55″ 18
Thermoclear 15 5/16” (8mm) Softlite 0.77 2-wall 25/64” (10mm) 0.348 0.57 1.75 55″ 18
Thermoclear 15 1″ (25mm) Clear 0.69 3-wall 25/32” (20mm) 0.660 0.34 2.94 173″ 23
Thermoclear 15 1″ (25mm) Softlite 0.67 3-wall 25/32” (20mm) 0.660 0.34 2.94 173″ 23
CoverLite 1″ (25mm) Clear 0.71 3-wall 25/32” (20mm) 0.660 0.34 2.94 173″ 23
CoverLite 1″ (25mm) Opal 0.51 3-wall 25/32” (20mm) 0.660 0.34 2.94 173″ 23
CoverLite 1″ (25mm) Bronze NA 3-wall 25/32” (20mm) 0.660 0.34 2.94 173″ 23
Thermoclear Plus 1″ (25mm) Clear 0.65 6-wall 25/32” (20mm) 0.700 0.27 3.70 173″ 23
Thermoclear Plus 1″ (25mm) Opal 0.54 6-wall 25/32” (20mm) 0.700 0.27 3.70 173″ 23
Thermoclear Plus 1″ (25mm) Bronze 0.42 6-wall 25/32” (20mm) 0.700 0.27 3.70 173″ 23

Sill Water Performance

G2 Bifold - Infold

SI3000 G2 Folding Glass Wall – Water Performance

TOP LOAD ONLY – INFOLD

Download as PDF
Surface Mount ADA Sill

Surface Mount ADA Sill

Limited/no water performance

ADA Recessed Flush Hat Sill

ADA Recessed Flush Hat Sill

Limited/no water performance

Recessed Flush Hat Sill

Recessed Flush Hat Sill

Limited/no water performance

Surface Mount Sill

Surface Mount Sill

Limited/no water performance

Thermal Surface Mount ADA Sill

Thermal Surface Mount ADA Sill

Limited/no water performance

TOP OR BOTTOM LOAD – INFOLD

Standard Sill

Standard Sill

9PSF lab water performance

6PSF field water performance

DRAIN TUBES
Recessed Flushed Sill

Recessed Flush Sill

9PSF lab water performance

6PSF field water performance

Recessed Standard Sill

Recessed Standard Sill

9PSF lab water performance

6PSF field water performance

Recessed Ramp Sill

Recessed Ramp Sill

Limited/no water performance

WEEP FLAPS
Recessed Flush Sill

Recessed Flush Sill

9PSF lab water performance

6PSF field water performance

Recessed Standard Sill

Recessed Standard Sill

9PSF lab water performance

6PSF field water performance

Recessed Ramp Sill

Recessed Ramp Sill

Limited/no water performance

G2 Bifold - Outfold

SI3000 G2 Folding Glass Wall – Water Performance

TOP LOAD ONLY – OUTFOLD

Download as PDF
Surface Mount ADA Sill

Surface Mount ADA Sill

Limited/no water performance

ADA Recessed Flush Hat Sill

ADA Recessed Flush Hat Sill

Limited/no water performance

Recessed Flush Hat Sill

Recessed Flush Hat Sill

Limited/no water performance

Surface Mount Sill

Surface Mount Sill

Limited/no water performance

Thermal Surface Mount ADA Sill

Thermal Surface Mount ADA Sill

Limited/no water performance

TOP OR BOTTOM LOAD – OUTFOLD

Standard Sill

Standard Sill

12PSF lab water performance

8PSF field water performance

DRAIN TUBES
Recessed Flush Sill

Recessed Flush Sill

9PSF lab water performance

6PSF field water performance

Recessed Standard Sill

Recessed Standard Sill

12PSF lab water performance

8PSF field water performance

Recessed Ramp Sill

Recessed Ramp Sill

4PSF lab water performance

2.67PSF field water performance

WEEP FLAPS
Recessed Flush Sill

Recessed Flush Sill

9PSF lab water performance

6PSF field water performance

Recessed Standard Sill

Recessed Standard Sill

12PSF lab water performance

8PSF field water performance

Recessed Ramp Sill

Recessed Ramp Sill

4PSF lab water performance

2.67PSF field water performance

G3 Bifold - Infold

SI3000 G3 Folding Glass Wall – Water Performance

TOP LOAD ONLY – INFOLD

Download as PDF
Surface Mount ADA Sill

Surface Mount ADA Sill

Limited/no water performance

ADA Recessed Flush Hat Sill

ADA Recessed Flush Hat Sill

Limited/no water performance

Recessed Flush Hat Sill

Recessed Flush Hat Sill

Limited/no water performance

Surface Mount Sill

Surface Mount Sill

Limited/no water performance

Thermal Surface Mount ADA Sill

Thermal Surface Mount ADA Sill

Limited/no water performance

TOP OR BOTTOM LOAD – INFOLD

Standard Sill

Standard Sill

9PSF lab water performance

6PSF field water performance

DRAIN TUBES
Recessed Flush Sill

Recessed Flush Sill

9PSF lab water performance

6PSF field water performance

Recessed Standard Sill

Recessed Standard Sill

9PSF lab water performance

6PSF field water performance

Recessed Ramp Sill

Recessed Ramp Sill

Limited/no water performance

WEEP FLAPS
Recessed Flush Sill

Recessed Flush Sill

9PSF lab water performance

6PSF field water performance

Recessed Standard Sill

Recessed Standard Sill

9PSF lab water performance

6PSF field water performance

Recessed Ramp Sill

Recessed Ramp Sill

Limited/no water performance

G3 Bifold - Outfold

SI3000 G3 Folding Glass Wall – Water Performance

TOP LOAD ONLY – OUTFOLD

Download as PDF
Surface Mount ADA Sill

Surface Mount ADA Sill

Limited/no water performance

ADA Recessed Flush Hat Sill

ADA Recessed Flush Hat Sill

Limited/no water performance

Recessed Flush Hat Sill

Recessed Flush Hat Sill

Limited/no water performance

Surface Mount Sill

Surface Mount Sill

Limited/no water performance

Thermal Surface Mount Sill

Thermal Surface Mount ADA Sill

Limited/no water performance

TOP OR BOTTOM LOAD – OUTFOLD

Standard Sill

Standard Sill

12PSF lab water performance

8PSF field water performance

DRAIN TUBES
Recessed Flush Sill

Recessed Flush Sill

9PSF lab water performance

6PSF field water performance

Recessed Standard Sill

Recessed Standard Sill

12PSF lab water performance

8PSF field water performance

Recessed Ramp Sill

Recessed Ramp Sill

Limited/no water performance

WEEP FLAPS
Recessed Flush Sill

Recessed Flush Sill

9PSF lab water performance

6PSF field water performance

Recessed Standard Sill

Recessed Standard Sill

12PSF lab water performance

8PSF field water performance

Recessed Ramp Sill

Recessed Ramp Sill

Limited/no water performance

G2 Sliding

SI8000 G2 Sliding Doors – Water Performance

THERMALLY IMPROVED

Download as PDF
G2 Sliding Thermal Sill

G2 Sliding Thermal Sill – 5/8” Flat Sill With No Up Leg

Limited/no expected field water performance

G2 ADA Sill with Interior Flooring

1-1.5PSF expected field water performance
ADA Compliant*

G2 Sliding Thermal Sill – 117/32” Up Leg

4.5PSF expected field water performance

G2 Sliding Thermal Sill

G2 Sliding Thermal Sill – 25/16” Up Leg

8.4PSF expected field water performance

G2 Sliding Thermal Sill

G2 Sliding Thermal Sill – 3″ Up Leg

12PSF expected field water performance

* Custom order; subject to availability. Only available in Class 1 Clear Anodized finish

NON-THERMAL

G2 Sliding Non-Thermal Sill

G2 Sliding Non-Thermal Sill – 11/4” Integrated Up Leg

4.0PSF expected field water performance

Hurricane certified

G2 Sliding Non-Thermal Sill

G2 Sliding Non-Thermal Sill – 123/32” Up Leg

6.5PSF expected field water performance

Hurricane certified

G2 Sliding Non-Thermal Sill

G2 Sliding Non-Thermal Sill – 17/8” Up Leg

7.1PSF expected field water performance

Hurricane certified

G2 Sliding Non-Thermal Sill – 1/2” Flat Sill With No Up Leg

Limited/no expected field water performance

ADA compliant

G2 Sliding Non-Thermal Tile Sill

G2 Sliding Non-Thermal Tile Sill

Limited/no expected field water performance

Interior applications only

ADA compliant

Side view of sill

G2 Sliding Non-Thermal Tile Sill With Sill Pan

5.2PSF expected field water performance

Sill pan required

ADA compliant

G3 Sliding

SI8000 G3 Sliding Doors – Water Performance

THERMALLY IMPROVED

Download as PDF
G3 Sliding Thermal Sill

G3 Sliding Thermal Sill – 5/8” Flat Sill With No Up Leg

Limited/no expected field water performance

G3 Sliding Thermal Sill

G3 Sliding Thermal Sill – 117/32” Up Leg

4.5PSF expected field water performance

G3 Sliding Thermal Sill – 25/16” Up Leg

8.4PSF expected field water performance

G3 Sliding Thermal Sill

G3 Sliding Thermal Sill – 3″ Up Leg

12PSF expected field water performance

G3 Sliding ADA Tank Sill

12PSF expected field water performance

Can use exterior weep flaps or drain tubes

ADA compliant

Sliding Door and Lift Slide Sills - Water Performance

G3 Sliding ADA Sub Sill

3-4PSF expected field water performance
Can use exterior weep flaps or drain tubes
ADA compliant

NON-THERMAL

SIde Diaram of sill with sill pan

G3 Sliding Non-Thermal Tile Sill

Limited/no expected field water performance

Interior applications only

ADA compliant

G3 Sliding Non-Thermal Tile Sill With Sill Pan

5.2PSF expected field water performance

Sill pan required for water performance

ADA compliant

G3 Lift-Slide

SI8000 G3 Lift-Slide Doors – Water Performance

Download as PDF
G3 Lift-Slide Thermal Sill

G3 Lift-Slide Thermal Sill – 5/8” Flat Sill With No Up Leg

Limited/no expected field water performance

G3 Lift-Slide Thermal Sill

G3 Lift-Slide Thermal Sill – 11/2” Up Leg

8PSF expected field water performance

G3 Sliding Thermal Sill – 3″ Up Leg

12PSF expected field water performance

G3 Lift-Slide ADA Tank Sill

12PSF expected field water performance

Can use exterior weep flaps or drain tubes

ADA compliant

G2 Terrace

SI2000 G2 Terrace Doors – Water Performance

SINGLE – OUTSWING

Download as PDF
ADA Sill

ADA Sill

Limited/no water performance

ADA compliant

Standard Outswing Sill

Standard Outswing Sill

6PSF lab water performance

4PSF field water performance

High Performance Outswing Sill

High Performance Outswing Sill

10PSF lab water performance

6.67PSF field water performance

FRENCH – OUTSWING

ADA Sill

ADA Sill

Limited/no water performance

ADA compliant

Standard Outswing Sill

Standard Outswing Sill

6PSF lab water performance

4PSF field water performance

High Performance Outswing Sill

High Performance Outswing Sill

6PSF lab water performance

4PSF field water performance

SINGLE – INSWING

ADA Sill

ADA Sill

Limited/no water performance

ADA compliant

Standard Inswing Sill

Standard Inswing Sill

Limited/no water performance

High Performance Inswing Sill

High Performance Inswing Sill

Not tested

High Performance Inswing Sill with Thermal Sill Pan

High Performance Inswing Sill with Thermal Sill Pan

4PSF lab water performance

2.67PSF field water performance

FRENCH – INSWING

ADA Sill

ADA Sill

Limited/no water performance

ADA compliant

Standard Inswing Sill

Standard Inswing Sill

Limited/no water performance

High Performance Inswing Sill

High Performance Inswing Sill

Not tested

High Performance Inswing Sill with Thermal Sill Pan

High Performance Inswing Sill with Thermal Sill Pan

4PSF lab water performance

2.67PSF field water performance

G3 Terrace

SI2000 G3 Terrace Doors – Water Performance

SINGLE – OUTSWING

Download as PDF
ADA Sill

ADA Sill

Limited/no water performance

ADA compliant

Standard Outswing Sill

Standard Outswing Sill

6PSF lab water performance

4PSF field water performance

High Performance Outswing Sill

High Performance Outswing Sill

6PSF lab water performance

4PSF field water performance

FRENCH – OUTSWING

ADA Sill

ADA Sill

Limited/no water performance

ADA compliant

Standard Outswing Sill

Standard Outswing Sill

6PSF lab water performance

4PSF field water performance

High Performance Outswing Sill

High Performance Outswing Sill

10PSF lab water performance

6.67PSF field water performance

SINGLE – INSWING

ADA Sill

ADA Sill

Limited/no water performance

ADA compliant

Standard Inswing Sill

Standard Inswing Sill

Not tested

High Performance Inswing Sill

High Performance Inswing Sill

Not tested

Extra High Performance Inswing Sill

Extra High Performance Inswing Sill

Not tested

FRENCH – INSWING

ADA Sill

ADA Sill

Limited/no water performance

ADA compliant

Standard Inswing Sill

Standard Inswing Sill

Not tested

High Performance Inswing Sill

High Performance Inswing Sill

Not tested

Extra High Performance Inswing Sill

Extra High Performance Inswing Sill

Not tested

Florida Approved Products (FBC)

The Florida building code is a single statewide building system that regulates every company involved in the repair, construction, or alteration of structures. Prompted by a series of natural disasters in the early 1990s, it replaced a complex existing system of local regulations.

Solar’s product listings can be found on the Florida Building Code website: Florida Building Code.

Products include:

  • Terrace Doors
  • Pivot Doors
  • Folding Glass Walls
  • Stacking Glass Walls
  • Sliding Doors
  • Fixed Skylights
  • Wood Curtain Wall

HVHZ & Miami NOA

Based on the memorandum from the State of Florida Department of Community Affairs, any product listed on the Florida Building Code Online which meets the state requirements for HVHZ is approved for use in both Miami-Dade and Broward counties of Florida. This allows for HVHZ products to be used in those counties even if the product is not listed on the Miami Dade Building Code website.

Products Include:

  • In/Outfold Folding Glass Wall (FGW) Panel System Non-Impact
  • Aluminum In/Outfold FGW 3 1/2 x 9 1/2 Impact
  • FGW 3X8 Panel Outfold All Wall Impact
  • FGW 3X8 Panel, 90 Degree Corner No Post, Infold, Impact
  • Infold Aluminum Reinforced FGW 3X8 Panel Impact
  • Outfold Aluminum Reinforced FGW 3X8 Panel Impact

Texas Approved Products (TDI)

Solar was previously added to TDI’s website for our Impact Resistant Curtain Walls and Store Front Systems, as well as our impact resistant side glazed fixed aluminum skylight/roof window.

Several Solar products have been listed on the Texas Department of Insurance website. TDI has approved several products to be installed along the Texas Gulf Coast.

Products include:

  • 102 Degree Corner Wood Curtain Wall
  • Thermally Broken Aluminum Glass Door Panels
  • Poly Wall Twin Aluminum Window with Polycarbonate Infill
  • 3 ½’ x 9 ½’ Aluminum Folding Glass Wall
  • Impact Resistant Pyramid Aluminum Fixed Skylights

Please Note: In addition to the testing standards listed, other standards such as ISO 9001, monitor the internal Quality Management System of a manufacturer within many groups. Not only does NAMI monitor Solar Innovations®’s Internal Quality Management System, but it is also an external source of inspection for product certification to standards expressly for the type of products (fenestration) Solar Innovations® manufactures. Solar Innovations® will continue to ensure the quality of our products through the voluntary participation in the National Accreditation and Manufacturing Institute’s program.  As a proud manufacturer of NAMI, NFRC, and ENERGY STAR qualified products, Solar Innovations® stands behind the quality of the products we deliver to customers.
