A large opening is an invitation for insects and other pests to invade your living space. A screen system will not only bring this invasion to a halt, but also provide a degree of shade — a nice thing to have on hot days. Solar Innovations® offers a wide selection of screens, spanning from 20 ft. wide to 16 ft. tall, in various operation types, colors and fabric types. Our screen systems can be paired with our door and window types or function independently for applications such as a screened-in porch. It’s a common misconception that the screen system must have the same operation of the door or window system (i.e. a sliding screen with a sliding glass door). While the operations can be the same, our screen systems can be paired with differing door or window types (i.e. a bifold door with a retractable screen or a swing door with a sliding screen). See each screen type for compatible combinations.
Folding & Stacking Screens
Folding and stacking screens mimic the flow of their glass door counterparts. Folding screens are hinged and fold left or right to be flush against a wall, while stacking screens are individually operated with top hung panels. Just as with glazed folding doors, operable swing door panels can be integrated into the door units to provide an entrance. Folding and stacking screen panels can also be used to create an outdoor room in place of a glass sunroom or pool house, allowing you to enjoy nature without bothersome insects.
Folding and stacking screens are available in all of our standard finishes and screen options. These are smooth, non-pleated screens that can be used in most project applications.
Folding screens are compatible with Bifold, Slide & Stack, and Swing Doors; Bifold and Slide & Stack Windows.
Configurations
Folding
Maximum panel size:
36″ W x 180″ H
Stacking
Maximum panel size:
48″ W x 192″ H
Slide & Stack screens are compatible with Slide & stack Doors & Windows.
Folding and Stacking Details

Screen Fabric Options

Charcoal Mesh

Pet

Clear Advantage

Charcoal Aluminum

Aluminum
Frame Finish Options
Paint
STANDARD – AAMA 2603*
SI Black
SI White
SI Sandstone
SI Natural Clay
SI Bronze
SI Hartford Green
Powder Coat Solids
STANDARD – AAMA 2605§
Black
FRSL 11618
White
FRSL 83247
Sandstone
FRSL 46647
Natural Clay
FRSL 47591
Bronze
FRML 97138
Hartford Green
FRSL 32872
Anodized
Additional cost
Class 1 Clear Anodized
Dark Bronze Anodized
Powder Coat Solids
PREMIUM – AAMA 2605§
Apollo White
FRSL 82908
Bone White
FRSL 82909
Ivory
FRSL 46646
Charcoal
FRSL 74654
Military Light Blue
FRSL 21709
Burgundy
FRSL 62496
Seawolf
FRSL 46645
Fashion Gray
FRSL 74652
Colonial Gray
FRSL 74653
Antique Bronze
FRSL 46648
Decoral Finishes (Powder Coat)¶
Knotty Pine 2103
DS 716 Textured
DS 402 Smooth
Douglas Fir 1501
DS 716 Textured
DS 402 Smooth
Acacia 1001
DS 716 Textured
DS 402 Smooth
Cherry 1402
DS 716 Textured
DS 402 Smooth
Acacia 1001
DS 733 Textured
DS 403 Smooth
Oak Assi 2501
DS 733 Textured
DS 403 Smooth
Cherry 1402
DS 733 Textured
DS 403 Smooth
Dark Walnut 1802
DS 733 Textured
DS 403 Smooth
Teak 2601
DS 706 Textured
Mahogany Finish
National Walnut 1806
DS 706 Textured
Mahogany Finish
*5 year warranty (finishes available while in stock).
†5 year warranty. Scratch & fade resistant; contains no VOCs. Lead times subject to availability.
§10 year; up to 20 year warranty. Scratch & fade resistant; contains no VOCs. Lead times subject to availability.
¶Lead times subject to availability.
‡Special order.
PLEASE NOTE: Depending upon color selection, additional charges and increased lead times may apply. Extended warranties and service plans are available for an additional charge. Examples are shown as accurate as photography and printing processes allow. Final finish selection should be made from a physical sample; contact Solar Innovations® for samples. Product and finish options are subject to vendor availability. Solar Innovations® reserves the right to discontinue any option at any time without notice. Additional options, including custom color match, are available; contact Solar Innovations® for details.
Sliding Screens
Sliding screens are generally used on large openings, most commonly on the exterior of sliding glass doors. The panels of this system can be pocketed into a wall cavity, be center split, or stack to the left or right when fully open.
A common application of a sliding screen system is to create protected outdoor space like a screened porch.
Compatible with Bifold, Slide & Stack, Sliding, Lift-Slide, and Swing Doors; Bifold, Slide & Stack, and Sliding Windows.
Configurations


Maximum panel size: 60″ W x 180″ H

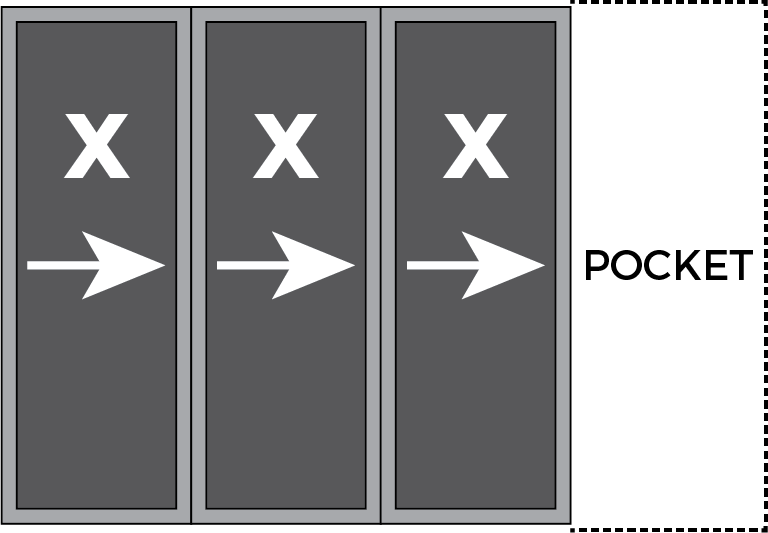

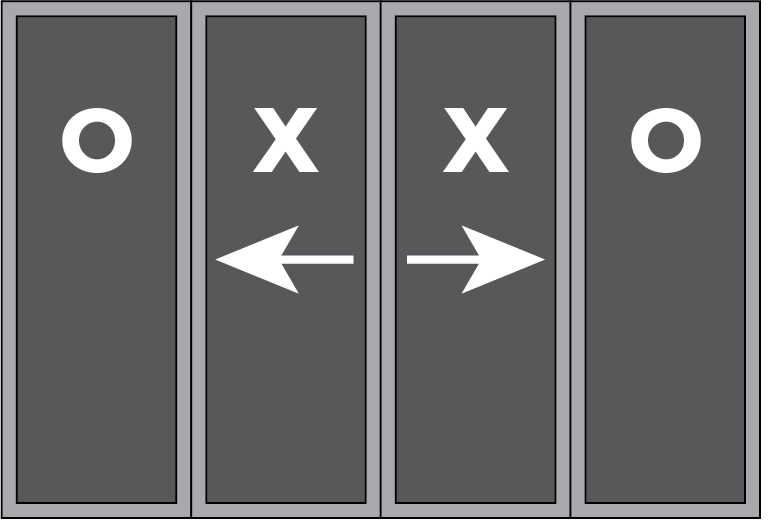

Sliding screens are available in multiple configurations, including pocketing.
Sliding Details

Screen Fabric Options

Charcoal Mesh

Pet

Clear Advantage

Charcoal Aluminum

Aluminum
Frame Finish Options
Paint
STANDARD – AAMA 2603*
SI Black
SI White
SI Sandstone
SI Natural Clay
SI Bronze
SI Hartford Green
Powder Coat Solids
STANDARD – AAMA 2605§
Black
FRSL 11618
White
FRSL 83247
Sandstone
FRSL 46647
Natural Clay
FRSL 47591
Bronze
FRML 97138
Hartford Green
FRSL 32872
Anodized
Additional cost
Class 1 Clear Anodized
Dark Bronze Anodized
Powder Coat Solids
PREMIUM – AAMA 2605§
Apollo White
FRSL 82908
Bone White
FRSL 82909
Ivory
FRSL 46646
Charcoal
FRSL 74654
Military Light Blue
FRSL 21709
Burgundy
FRSL 62496
Seawolf
FRSL 46645
Fashion Gray
FRSL 74652
Colonial Gray
FRSL 74653
Antique Bronze
FRSL 46648
Decoral Finishes (Powder Coat)¶
Knotty Pine 2103
DS 716 Textured
DS 402 Smooth
Douglas Fir 1501
DS 716 Textured
DS 402 Smooth
Acacia 1001
DS 716 Textured
DS 402 Smooth
Cherry 1402
DS 716 Textured
DS 402 Smooth
Acacia 1001
DS 733 Textured
DS 403 Smooth
Oak Assi 2501
DS 733 Textured
DS 403 Smooth
Cherry 1402
DS 733 Textured
DS 403 Smooth
Dark Walnut 1802
DS 733 Textured
DS 403 Smooth
Teak 2601
DS 706 Textured
Mahogany Finish
National Walnut 1806
DS 706 Textured
Mahogany Finish
*5 year warranty (finishes available while in stock).
†5 year warranty. Scratch & fade resistant; contains no VOCs. Lead times subject to availability.
§10 year; up to 20 year warranty. Scratch & fade resistant; contains no VOCs. Lead times subject to availability.
¶Lead times subject to availability.
‡Special order.
PLEASE NOTE: Depending upon color selection, additional charges and increased lead times may apply. Extended warranties and service plans are available for an additional charge. Examples are shown as accurate as photography and printing processes allow. Final finish selection should be made from a physical sample; contact Solar Innovations® for samples. Product and finish options are subject to vendor availability. Solar Innovations® reserves the right to discontinue any option at any time without notice. Additional options, including custom color match, are available; contact Solar Innovations® for details.
Swinging Screens
Solar Innovations®’ traditional screen doors are available in both outswing single, as well as French door configurations. The screen door is constructed from an aluminum frame which mimics the sightlines of our swing doors.
For a consistent look, both the screen and swing door can utilize the same handle style. The hinges used on our screen doors are the same as the ones in our hurricane-rated folding door system, which prevents rust and potential operation issues. There are five types of screens to choose from and the frames are available in all of our standard and designer finishes. Sizes range up to 42” W x 120” H for terrace doors and up to 84” W x 120” H for French doors.
Compatible with Swing Doors.
Swinging Details

Screen Fabric Options

Charcoal Mesh

Pet

Clear Advantage

Charcoal Aluminum

Aluminum
Frame Finish Options
Paint
STANDARD – AAMA 2603*
SI Black
SI White
SI Sandstone
SI Natural Clay
SI Bronze
SI Hartford Green
Powder Coat Solids
STANDARD – AAMA 2605§
Black
FRSL 11618
White
FRSL 83247
Sandstone
FRSL 46647
Natural Clay
FRSL 47591
Bronze
FRML 97138
Hartford Green
FRSL 32872
Anodized
Additional cost
Class 1 Clear Anodized
Dark Bronze Anodized
Powder Coat Solids
PREMIUM – AAMA 2605§
Apollo White
FRSL 82908
Bone White
FRSL 82909
Ivory
FRSL 46646
Charcoal
FRSL 74654
Military Light Blue
FRSL 21709
Burgundy
FRSL 62496
Seawolf
FRSL 46645
Fashion Gray
FRSL 74652
Colonial Gray
FRSL 74653
Antique Bronze
FRSL 46648
Decoral Finishes (Powder Coat)¶
Knotty Pine 2103
DS 716 Textured
DS 402 Smooth
Douglas Fir 1501
DS 716 Textured
DS 402 Smooth
Acacia 1001
DS 716 Textured
DS 402 Smooth
Cherry 1402
DS 716 Textured
DS 402 Smooth
Acacia 1001
DS 733 Textured
DS 403 Smooth
Oak Assi 2501
DS 733 Textured
DS 403 Smooth
Cherry 1402
DS 733 Textured
DS 403 Smooth
Dark Walnut 1802
DS 733 Textured
DS 403 Smooth
Teak 2601
DS 706 Textured
Mahogany Finish
National Walnut 1806
DS 706 Textured
Mahogany Finish
*5 year warranty (finishes available while in stock).
†5 year warranty. Scratch & fade resistant; contains no VOCs. Lead times subject to availability.
§10 year; up to 20 year warranty. Scratch & fade resistant; contains no VOCs. Lead times subject to availability.
¶Lead times subject to availability.
‡Special order.
PLEASE NOTE: Depending upon color selection, additional charges and increased lead times may apply. Extended warranties and service plans are available for an additional charge. Examples are shown as accurate as photography and printing processes allow. Final finish selection should be made from a physical sample; contact Solar Innovations® for samples. Product and finish options are subject to vendor availability. Solar Innovations® reserves the right to discontinue any option at any time without notice. Additional options, including custom color match, are available; contact Solar Innovations® for details.
Fixed Screens
Fixed screens are used on casement, awning, hopper, tilt turn, and sliding glass windows. This type of screen is the typical selection for residential and commercial applications and is attached in a stationary position. Fixed screens can be easily removed for cleaning.
These screens can also be placed on the interior of an operable skylight or ridge vent to protect from insects. For casement and awning windows, screens are typically placed on the inside of the frame, closest to the interior space. Screens on tilt turn and hopper windows are placed on the exterior side since the window opens to the interior. Sizes range up to 96” W x 192” H.
Compatible with Bifold, Tilt-Turn, Sliding, and Hopper Windows.
Fixed Details

Screen Fabric Options

Charcoal Mesh

Pet

Clear Advantage

Charcoal Aluminum

Aluminum
Frame Finish Options
Paint
STANDARD – AAMA 2603*
SI Black
SI White
SI Sandstone
SI Natural Clay
SI Bronze
SI Hartford Green
Powder Coat Solids
STANDARD – AAMA 2605§
Black
FRSL 11618
White
FRSL 83247
Sandstone
FRSL 46647
Natural Clay
FRSL 47591
Bronze
FRML 97138
Hartford Green
FRSL 32872
Anodized
Additional cost
Class 1 Clear Anodized
Dark Bronze Anodized
Powder Coat Solids
PREMIUM – AAMA 2605§
Apollo White
FRSL 82908
Bone White
FRSL 82909
Ivory
FRSL 46646
Charcoal
FRSL 74654
Military Light Blue
FRSL 21709
Burgundy
FRSL 62496
Seawolf
FRSL 46645
Fashion Gray
FRSL 74652
Colonial Gray
FRSL 74653
Antique Bronze
FRSL 46648
Decoral Finishes (Powder Coat)¶
Knotty Pine 2103
DS 716 Textured
DS 402 Smooth
Douglas Fir 1501
DS 716 Textured
DS 402 Smooth
Acacia 1001
DS 716 Textured
DS 402 Smooth
Cherry 1402
DS 716 Textured
DS 402 Smooth
Acacia 1001
DS 733 Textured
DS 403 Smooth
Oak Assi 2501
DS 733 Textured
DS 403 Smooth
Cherry 1402
DS 733 Textured
DS 403 Smooth
Dark Walnut 1802
DS 733 Textured
DS 403 Smooth
Teak 2601
DS 706 Textured
Mahogany Finish
National Walnut 1806
DS 706 Textured
Mahogany Finish
*5 year warranty (finishes available while in stock).
†5 year warranty. Scratch & fade resistant; contains no VOCs. Lead times subject to availability.
§10 year; up to 20 year warranty. Scratch & fade resistant; contains no VOCs. Lead times subject to availability.
¶Lead times subject to availability.
‡Special order.
PLEASE NOTE: Depending upon color selection, additional charges and increased lead times may apply. Extended warranties and service plans are available for an additional charge. Examples are shown as accurate as photography and printing processes allow. Final finish selection should be made from a physical sample; contact Solar Innovations® for samples. Product and finish options are subject to vendor availability. Solar Innovations® reserves the right to discontinue any option at any time without notice. Additional options, including custom color match, are available; contact Solar Innovations® for details.
B Series Retractable Screens
B Series Screens are a pleated screen suited for larger openings. These screens consist of either a single or double panel configuration, and have the capability to meet on a 90° corner to enclose a space with only one visible, vertical division. This screen can be paired with folding doors, sliding doors, French doors, lift slide doors, or screen rooms.
Compatible with Bifold, Slide & Stack, Sliding, Lift-Slide, and Swing Doors; Bifold, Tilt-Turn, Slide & Stack, Sliding, Casement, Awning, and Hopper Windows.

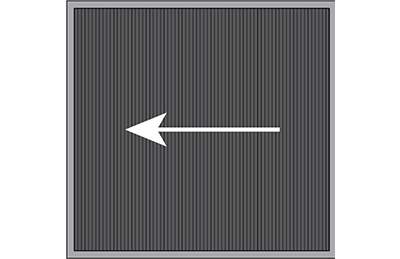

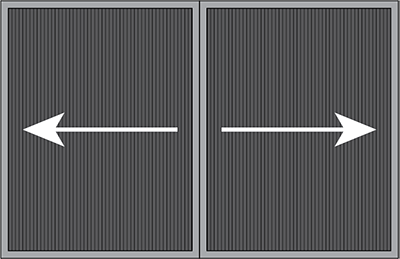

Configurations
Maximum panel size:
344″ W x 126″ H
Maximum panel size:
177″ W x 126″ H
Please note: Acceptable sizes vary depending on height and width.
B Series Details

Frame Finish Options
Black
Grey
Pearl White
Please Note: Depending upon color selection, extra cost and lead times may apply for all finishes other than Solar Innovations® stock standards. Color illustrations are shown as accurate as standard photography and printing processes allow. Final finish selection should be made from a physical sample; please contact Solar Innovations® to receive samples. All product and finish options are subject to vendor availability. Solar Innovations® reserves the right to discontinue any option at any time without notice. Additional options, including custom color matches, are available; contact a Solar Innovations® sales designer for details.
C Series EcoScreen
C Series EcoScreens combine the functionality of both an insect screen and privacy shade. The unit is available in an all-screen configuration, an all-blind configuration, or a combination blind and screen unit. The blinds and screens are retracted from vertical cassettes on both sides of the opening and feature an anti-slam mechanism. The blind portion of the unit can also function as a projector screen for your home theater system.
Compatible with Bifold, Sliding, and Lift-Slide Doors.
Configurations
Single Insect Screen:
144″ W x 125″ H
Single Eco Shade:
144″ W x 90″ H
Double Insect Screen:
288″ W x 125″ H
Double Eco Shade:
288″ W x 90″ H
Combined:
144″ W x 90″ H
Please note: Acceptable sizes vary depending on height and width.
C Series Details

Frame Finish Options
White
Bronze
Clear Anodized
Please Note: Depending upon color selection, extra cost and lead times may apply for all finishes other than Solar Innovations® stock standards. Color illustrations are shown as accurate as standard photography and printing processes allow. Final finish selection should be made from a physical sample; please contact Solar Innovations® to receive samples. All product and finish options are subject to vendor availability. Solar Innovations® reserves the right to discontinue any option at any time without notice. Additional options, including custom color matches, are available; contact a Solar Innovations® sales designer for details.
G Series Retractable Screens
Sheer
Solar Innovations® offers a retractable screen with a stylish, pleated material that can be operated with one hand. Units may include one to six panels and can be parted at any vertical rail. G Series Screens have an ADA compliant sill track and are available in several frame finish options. These screens can typically be designed to match the vertical rail alignment of the door system they are complementing, minimizing sightline interruptions.
Compatible with Bifold, Slide & Stack, Clear Glass Walls, Sliding, Lift-Slide, and Swing Doors; Bifold, Slide & Stack, and Sliding Windows.
Configurations

Maximum Combined Screen Panels Per Opening:
3 from right / 3 from left = 6 total panels
Maximum Per Panel Size:
63″ W x 125″ H
G Series Sheer Retractable Screen Details

Frame Finish Options
White
Black
Adobe
Brown
Tan
Please Note: Depending upon color selection, extra cost and lead times may apply for all finishes other than Solar Innovations® stock standards. Color illustrations are shown as accurate as standard photography and printing processes allow. Final finish selection should be made from a physical sample; please contact Solar Innovations® to receive samples. All product and finish options are subject to vendor availability. Solar Innovations® reserves the right to discontinue any option at any time without notice. Additional options, including custom color matches, are available; contact a Solar Innovations® sales designer for details.
Milano
A retractable door screen can be easily integrated into either a single door or French door opening. The screens can be either a single unit that pulls left to right or a double panel which joins in the middle and then retracts back to the framing. Our Milano screens are held together in the center with industrial strength magnets. Screens allow users to easily pass from inside to outside and can be stopped at any point on the track with the anti-slam feature. Several frame finishes and sizes are available that will suit most openings.
Compatible with Bifold, Slide & Stack, Clear Glass Walls, Sliding, Lift-Slide, and Swing Doors; Bifold, Slide & Stack, and Sliding Windows.
Configurations
Maximum Size Double:
108″ W x 100″ H
Maximum Size Single:
60″ W x 100″ H
G Series Milano Retractable Screen Details

Frame Finish Options
White
Brownstone
Desert Tan
Adobe
Please Note: Depending upon color selection, extra cost and lead times may apply for all finishes other than Solar Innovations® stock standards. Color illustrations are shown as accurate as standard photography and printing processes allow. Final finish selection should be made from a physical sample; please contact Solar Innovations® to receive samples. All product and finish options are subject to vendor availability. Solar Innovations® reserves the right to discontinue any option at any time without notice. Additional options, including custom color matches, are available; contact a Solar Innovations® sales designer for details.
S Series Retractable Screens
S Series Screens are vertically retractable screens that provide the ability to enjoy the outdoors while being protected from pests. S Series Screens feature a specialty zipper system which guides the fabric within the track and prevents insects from entering. The zipper system can also prevent sunlight from entering the room if black out fabric is selected.
Compatible with Bifold, Slide & Stack, Clear Glass Walls, Sliding, and Lift-Slide Doors.
Configurations

Maximum Sizes:
240″ W x 192″ H
Please note: Acceptable sizes may vary depending on height and width.
*Fabric seam location will depend on fabric type.
S Series Retractable Screen Details

Frame Finish Options
Mocha
Brown
Ivory
Bronze
White
Black
Grey
Taupe
Green
Please Note: Depending upon color selection, extra cost and lead times may apply for all finishes other than Solar Innovations® stock standards. Color illustrations are shown as accurate as standard photography and printing processes allow. Final finish selection should be made from a physical sample; please contact Solar Innovations® to receive samples. All product and finish options are subject to vendor availability. Solar Innovations® reserves the right to discontinue any option at any time without notice. Additional options, including custom color matches, are available; contact a Solar Innovations® sales designer for details.
W Series Retractable Screens
W-V screens
W-V screens are a horizontally retractable system that allow for unobstructed views without any visible frames, pull bars or seams. They are capable of screening openings up to 336” W x 132” H. Operable with just a single hand, these durable screens are made with a wind and pet resistant mesh.
Compatible with Doors and Windows.
Configurations

Maximum panel size:
336″ W x 132″ H
W-V Retractable Screen Details

Frame Finish Options
White
Black
Bronze
Clear Anodized
Please Note: Depending upon color selection, extra cost and lead times may apply for all finishes other than Solar Innovations® stock standards. Color illustrations are shown as accurate as standard photography and printing processes allow. Final finish selection should be made from a physical sample; please contact Solar Innovations® to receive samples. All product and finish options are subject to vendor availability. Solar Innovations® reserves the right to discontinue any option at any time without notice. Additional options, including custom color matches, are available; contact a Solar Innovations® sales designer for details.

Configurations
Maximum Double Screen Size:
504″ W x 132″ H
Maximum Single Screen Size:
252″ W x 132″ H
W-H screens
W-H screens are a horizontally retractable system and can be paired with a wide array of door types. A single screen can open up to 252”, or paired with an opposing screen to double the protection to 504”. This system features an auto-stop function that can stop anywhere along its track, allowing for easy access.
Compatible with Doors and Windows.
W-H Retractable Screen Details

Frame Finish Options
White
Black
Bronze
Clear Anodized
Sandalwood
Please Note: Depending upon color selection, extra cost and lead times may apply for all finishes other than Solar Innovations® stock standards. Color illustrations are shown as accurate as standard photography and printing processes allow. Final finish selection should be made from a physical sample; please contact Solar Innovations® to receive samples. All product and finish options are subject to vendor availability. Solar Innovations® reserves the right to discontinue any option at any time without notice. Additional options, including custom color matches, are available; contact a Solar Innovations® sales designer for details.
Operation Examples
Folding | Stacking | Sliding | Swinging | Fixed | B Series Retractable | C Series Retractable | G Series Sheer | G Series Milano | S Series Retractable | W-V Series Retractable | W-H Series Retractable | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
Type of Screen | Retractable | Retractable | Retractable | Retractable | Retractable | Retractable | Retractable | Pleated | Retractable | Retractable | Retractable | Retractable |
Maximum Width | ||||||||||||
- Single Panels/Sections | 36" | 48" | 60" | 42" | 96" | 177" | 144" | 63" | 60" | 240"* | 354"* | 252" |
- Multiple Panels/Sections | 720" (using 20 panels) | Unlimited | 600" (using 10 panels; can be dual- or multi-tracked) | 84" (French Door configuration) | NA | 354" (2 sections that meet in the center) | 288" (2 sections that meet in the center) | 480" (using 6 panels) | 108" (2 sections that meet in the center) | NA | NA | 504" (2 sections that meet in the center) |
Maximum Height | 180" | 192" | 180" | 120" | 192" | 126" | 125" | 125" | 100" | 192" | 132" | 132" |
Screen Fabric | Smooth | Smooth | Smooth | Smooth | Smooth | Pleated | Smooth | Pleated | Smooth | Smooth | Pleated | Pleated |
Screen Fabric Colors |
|
|
|
|
|
|
|
|
||||
Standard Frame Colors |
White Black Bronze Clear Anodized Dark Bronze Anodized |
Black Grey Pearl White |
White Bronze Clear Anodized |
White Black Adobe Brown Tan |
White Adobe Desert Tan Brownstone |
White Black Mocha Brown Ivory Bronze Grey Taupe Green |
White Black Bronze Clear Anodized Sandal-wood |
White Black Bronze Clear Anodized |
||||
Designer Frame Colors |
Sandstone Natural Clay Hartford Green |
|||||||||||
Standard Size Kits | ||||||||||||
Vertical Pull | ||||||||||||
Horizontal Pull | ||||||||||||
Motorized | ||||||||||||
Application | Bifold, Slide & Stack, and Swing Doors; Bifold and Slide & Stack Windows | Slide & Stack Doors and Windows | Bifold, Slide & Stack, Sliding, Lift-Slide, and Swing Doors; Bifold, Slide & Stack, and Sliding Windows | Swing Doors | Bifold, Tilt-Turn, Sliding, and Hopper Windows | Bifold, Slide & Stack, Sliding, Lift-Slide, and Swing Doors; Bifold, Tilt-Turn, Slide & Stack, Sliding, Casement, Awning, and Hopper Windows | Bifold, Sliding, and Lift-Slide Doors | Bifold, Slide & Stack, Clear Glass Walls, Sliding, Lift-Slide, and Swing Doors; Bifold, Slide & Stack, and Sliding Windows | Bifold, Slide & Stack, Clear Glass Walls, Sliding, Lift-Slide, and Swing Doors; Bifold, Slide & Stack, and Sliding Windows | Bifold, Slide & Stack, Clear Glass Walls, Sliding, and Lift-Slide Doors | Bifold Doors and Windows | Bifold Doors and Windows |
