Exceptional Quality Residential and Commercial Folding Glass Walls

Our Bifold Door System, also known as Folding Glass Walls or Accordion-Style Doors, features the narrowest stiles, largest panels, and is the most versatile folding wall system in the architectural glazing industry. Since 1998, we have been providing innovative solutions to home and business owners with superior-quality glazing products, that are designed and manufactured in the USA. Constructed of aluminum, wood or vinyl, our customizable, impact-rated bifold doors utilize patented technology and are continually tested to exceed industry performance standards. As a single-source provider, our door systems seamlessly match our other fenestration systems and through vertical integration, the majority of our hardware and accessories are precision crafted in our own facility to deliver the highest quality components.

  • Top or Bottom load
  • In-fold or Out-fold
  • All-wall or Split-wall
  • Swing Door Integration

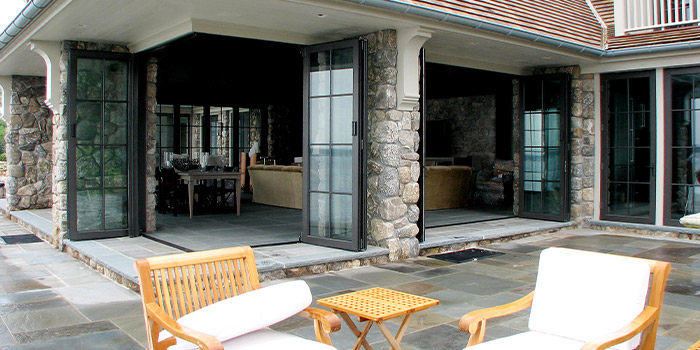

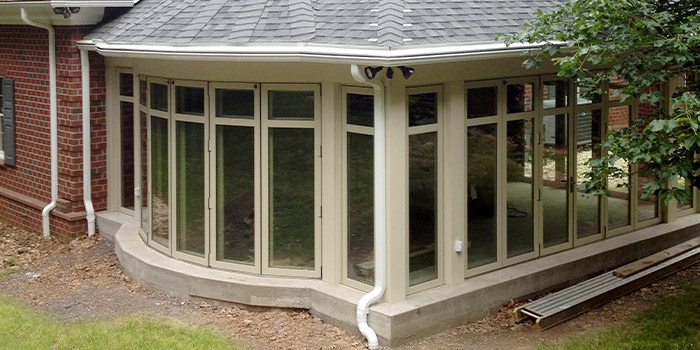

  • Segmented & No-Post options
  • Aluminum, Wood, or Vinyl
  • Three standard frame widths
  • Up to 3' x 15' panels & larger
  • Standard & Custom colors
  • Standard, high-performance & ADA compliant sills
  • Matching Sidelites & Transoms
  • Air & Water tested
  • Impact rated
  • Structural, Acoustical, & Thermal tested
  • 3/16" to 17/16" & larger
  • Monolithic, insulated, laminated, decorative, polycarbonate, or solid panel
  • Multiple styles & finishes
  • Closer, limiters, & panic hardware
  • Low maintenance rollers
  • Aluminum hinges with stainless steel pins
  • Wood veneer, wood/aluminum clad
  • Faux wood finishes
  • Stainless steel, copper or bronze cladding

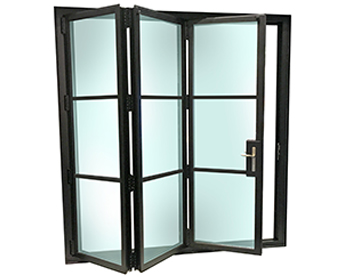

  • Grids, muntins, horizontal/vertical mullions & simulated divided lites (SDLs)
  • Sliding, Retracting screens

MATERIALS

Aluminum Bifold Doors

ALUMINUM

Utilizing our most popular material, Aluminum Bifold Door Systems offer endless possibilities of sightlines, configurations, finishes, and operations. These durable operable walls are available in three standard frame widths: Standard, Narrow, and Extra Narrow — the narrowest stile width in the industry. Available in thermal and non-thermal varieties, the frame is also available in two thicknesses: our standard G2 (21/4”), which meets most needs or G3 (3”), which enables larger frames and higher design pressures. All of these systems feature an unmatched ease of operation and accommodate the largest openings.

Solid wood Bifold doors

SOLID WOOD

Wood Folding Glass Walls can be designed and configured like their aluminum counterparts. Through our patented framing process, utilizing a specialty glue-laminated (scantling) wood, these doors can be custom tailored to match the finish of the surrounding space. While wood products are often a slightly larger investment than aluminum or vinyl, these units carry excellent thermal performance. For applications where the Wood Bifold Doors are exposed to the elements, we recommend utilizing aluminum cladding on the exterior faces to ensure the longevity of the unit. Learn more about Wood Bifold Doors.

Cladding Bifold doors

METAL/WOOD-CLADDED ALUMINUM, WOOD-VENEER

Our Metal/Wood-Cladded Aluminum and Wood Veneer Bifold Doors showcase the beautiful qualities of specific types of metal or wood species while maintaining the superior performance and thermal properties of aluminum. With a wide variety of wood/metal cladding and veneer options, our Folding Walls can be cladded (or have wood veneer applied) on one or both sides. It is not recommended that wood be applied to exterior surfaces due to the damage severe weather can afflict on wood.

Vinyl Bifold doors

VINYL COMPOSITE

Vinyl Composite Accordion-Style Doors, are a versatile option for opening large spans for both residential and commercial applications. These low-maintenance folding walls, which require a smaller investment than their aluminum or wood counterparts, are the perfect solution to highlight a panoramic view or take advantage of the benefits of indoor-outdoor living. Vinyl Composite Folding Glass Walls provide excellent thermal and acoustical performance, reducing energy consumption while dampening the sounds of the outdoors. Learn more about Vinyl Bifold Doors.

DOWNLOADS

Our latest Door & Window Brochure Our Latest Brochure
Unlimited Configurations and Operations Specifications

Cut Sheets

Cut Sheets are product-specific data sheets that describe the features and options of each product type. Where applicable, it shows hardware selections, configurations and finishes as well as sizes and performance details. Photos and detailed drawings are also included in Cut Sheets.

BIM Objects

Our complete product line is available to download as a Revit BIM Object, that can be incorporated into Revit in the design phase. Available in RAR format. Learn more about our BIM Models by watching our introductory video.

Reference Sheets

Reference Sheets showcase a selection of some of our finest achievements per product category. In them you will find photos, and a few details about the project. Available in PDF format.

OPERATIONAL VIDEOS

OPTIONS

Finishes

Paint

STANDARD – AAMA 2603*

SI Black

SI White

SI Sandstone

SI Natural Clay

SI Bronze

SI Hartford Green

Powder Coat Solids

STANDARD – AAMA 2605§

Black

FRSL 11618

White

FRSL 83247

Sandstone

FRSL 46647

Natural Clay

FRSL 47591

Bronze

FRML 97138

Hartford Green

FRSL 32872

Anodized

Additional cost

Class 1 Clear Anodized

Dark Bronze Anodized

Powder Coat Solids

PREMIUM – AAMA 2605§

Apollo White

FRSL 82908

Bone White

FRSL 82909

Ivory

FRSL 46646

Charcoal

FRSL 74654

Military Light Blue

FRSL 21709

Burgundy

FRSL 62496

Seawolf

FRSL 46645

Fashion Gray

FRSL 74652

Colonial Gray

FRSL 74653

Antique Bronze

FRSL 46648

Decoral Finishes (Powder Coat)

Knotty Pine 2103

DS 716 Textured

DS 402 Smooth

Douglas Fir 1501

DS 716 Textured

DS 402 Smooth

Acacia 1001

DS 716 Textured

DS 402 Smooth

Cherry 1402

DS 716 Textured

DS 402 Smooth

Acacia 1001

DS 733 Textured

DS 403 Smooth

Oak Assi 2501

DS 733 Textured

DS 403 Smooth

Cherry 1402

DS 733 Textured

DS 403 Smooth

Dark Walnut 1802

DS 733 Textured

DS 403 Smooth

Teak 2601

DS 706 Textured

Mahogany Finish

National Walnut 1806

DS 706 Textured

Mahogany Finish


Wood Veneering (Unfinished)

STANDARD

Douglas Fir

White Oak

Walnut

Mahogany

Wood Veneering (Unfinished)

PREMIUM

White Pine

Pecan Pine

Cherry

NOTE: WOOD VENEERING IS FOR INTERIOR APPLICATIONS ONLY. AVAILABLE ON A LIMITED BASIS DUE TO VENDOR SUPPLY.

Wood/Glulam

STANDARD

Red Oak

White Ash

Hard Maple

White Oak

Wood/Glulam

PREMIUM

Douglas Fir

Cherry

Sapele Mahogany

Walnut


*5 year warranty (finishes available while in stock).

†5 year warranty. Scratch & fade resistant; contains no VOCs. Lead times subject to availability.

§10 year; up to 20 year warranty. Scratch & fade resistant; contains no VOCs. Lead times subject to availability.

Lead times subject to availability.

‡Special order.

PLEASE NOTE: Depending upon color selection, additional charges and increased lead times may apply. Extended warranties and service plans are available for an additional charge. Examples are shown as accurate as photography and printing processes allow. Final finish selection should be made from a physical sample; contact Solar Innovations® for samples. Product and finish options are subject to vendor availability. Solar Innovations® reserves the right to discontinue any option at any time without notice. Additional options, including custom color match, are available; contact Solar Innovations® for details.

Hardware

Swing, Pivot, Slide & Stack, and Bifold Doors Hardware

Handles

Solid Brass – Coastal Applications*

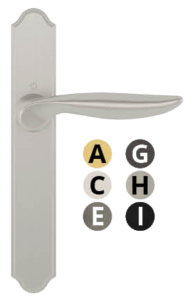

Toronto

Standard

Atlanta

Dallas

Munchen

Rodos

Verona

Finish Options

A Polished Brass

B Antique Brass

C Brushed Chrome*

D Polished Chrome*

E Oil Rubbed Brass

F White

G Matte Black

H Satin Nickel*

I Rustic Umber

J Dark Bronze Metallic

*Coastal applications are only available with select finish options.

Aluminum – Inland Applications

Hardware Frankfurt

Frankfurt

Hardware London

London

Pure White

Pure Silver

ZAMAC/Brass – Inland Applications (G2 Only)

Allegro handles

Allegro

Torino handles

Torino

Venice handles

Venice

Satin Chrome

Antique Brass

Black PC

Dark Bronze

Polished Chrome*

Oil Rubbed Bronze

White PC

Pewter

Polished Brass

Dark Bronze PC

Satin Nickel

* Not available for Torino

Architectural Door Pulls

GeoMetek Architectural Door Pull

GeoMetek

Bandwidth Architectural Door Pull

BandWidth

MegaCurve Architectural Door Pull

MegaCurve

Contemporary

Hardware 1005

1005

Hardware 1035

1035

Hardware 1058

1058

Hardware 1076

1076

Hardware 1102

1102

Additional handle styles, colors, and black plate options available upon request. Non-standard handle options may increase lead times and/or cost. All handles available with thumbturn interior lock with lever exterior, lever interior and exterior, and thumbturn interior lock with keyed exterior options.

Pull Hardware

Hardware Recessed Pull

Recessed Pull

(In-Fold)

Hardware Hinge Pull

Extruded Hinge Pull

(Out-Fold)

Hardware Low Profile Handle

Low Profile Handle

Hinges

Hardware Semi Concealed Hinge

Semi-Concealed Hinge

Hardware Surface-Mount-Hinge

Surface Mount Hinge

Locks

Hardware Two Point Locking Handle

Two-Point Locking Handle

Two Point Lock Keyed

Two-Point Keyed Locking Handle*

Hardware Thumb-Turn

Thumb Turn Lock

Standard Flushbolt

Standard Flush Bolt

Pull Hardware, Hinge, and Lock Finish Options

SI White

SI Bronze

Class I Clear Anodized

Dark Bronze Anodized

Custom color options are also available with engineering approval.

Closer, Catch, & Limiter

Hardware D Series 7414

D Series 7414 Door Closer

Hardware D Series TS93

D Series TS93 Door Closer

Hardware C Series PR82

C Series PR82 Door Closer

Hardware Door Catch

Adjustable Door Catch

Hardware Door Limiter

Door Limiter

Commercial Panic Hardware Options

Hardware Exterior Entry Trim

Exterior Entry Trim

Mortise Panic

Mortise Panic

Impact Panic

Impact Panic

Surface Mount Panic

Surface-Mount Panic

Hardware Commercial Wire Push Pull

Wire Pull

(Push/Pull)

Hardware Commercial Wire Push

Wire Pull

(Push Only)

Passive Hardware Sets

Square Passive Hardware Handle Set

Square

Commercial

Toronto Passive Hardware Set

Toronto

Please Note: All hardware is subject to vendor availability. Custom finishes may be available upon request at additional lead time and/or cost. Solar Innovations reserves the right to discontinue any hardware option at any time.

G2 Details

Top & Bottom Load Sills

G2 Recessed with Ramps Sill

Recessed with Ramps*

Limited air & water performance similar to

commercial door because of tank.

ADA compliant with sill fill.

G2 Recessed Flush Sill

Recessed Flush*

Water: 9psf

ADA compliant with sill fill.

G2 Recessed Standard Sill

Recessed Standard*

Water: 12psf out-fold, 9psf in-fold

G2 Standard Sill

Standard*

Water: 12psf out-fold, 9psf in-fold

*Florida Impact Tested Options

Top Load Only Sills

G2 Recessed Flush Hat Sill

Recessed Flush Hat

Limited air & water performance

ADA compliant with sill fill.

G2 Surface Mount Sill

Surface Mount

Limited air & water performance

G2 Thermal ADA Sill

Thermal ADA**

Limited air & water performance

G2 Thermal ADA Sill

Recessed Thermal ADA

Limited air & water performance

G2 ADA Recessed Flush Hat

ADA Recessed Flush Hat

Limited air & water performance

G2 ADA Surface Mount Sill

ADA Surface Mount

Limited air & water performance

Note: G3 Center Pivot Folding Glass Walls will get limited air and water performance.

** 8' maximum panel height, 16' maximum frame width, 3/32" maximum allowable header deflection.

Vertical & Horizontal Rails

Head Detail Rail

Head Detail

Standard Thermal Rail

Standard Thermal

Standard Non-Thermal Rail

Standard
Non-Thermal

Narrow Thermal Rail

Narrow Thermal

Narrow Non-Thermal Rail

Narrow
Non-Thermal

Stretch Rail

Stretch Rail

Heavy Thermal Rail

Heavy Thermal

10 inch Bottom Rail

10" Bottom Rail

Mullions

(True Divided Lites)

Please note: All mullions offered by Solar Innovations® include thermal break, regardless of the system.

Narrow Mullion

Narrow Mullion

Standard Mullion

Standard Mullion

Jamb Details

Regular G2 Jamb & Frame

Regular G2 Jamb & Frame

Narrow G2 Jamb & Regular Frame

Narrow G2 Jamb & Regular G2 Frame

Narrow G2 Jamb & Frame

Narrow G2 Jamb & Frame

Top and bottom horizontals are unable to utilize narrow framing. Options dependent upon desired size and engineering requirements.

Stacked Wall Dimensions

Sandard Jamb (Subtract 15/16" for Narrow Jamb)

2 Panel Standard Jamb Dimensions

2 Panels

3 Panel Standard Jamb Dimensions

3 Panels

4 Panel Standard Jamb Dimensions

4 Panels

5 Panel Standard Jamb Dimensions

5 Panels

6 Panel Standard Jamb Dimensions

6 Panels

7 Panel Standard Jamb Dimensions

7 Panels

8 Panel Standard Jamb Dimensions

8 Panels

G3 Details

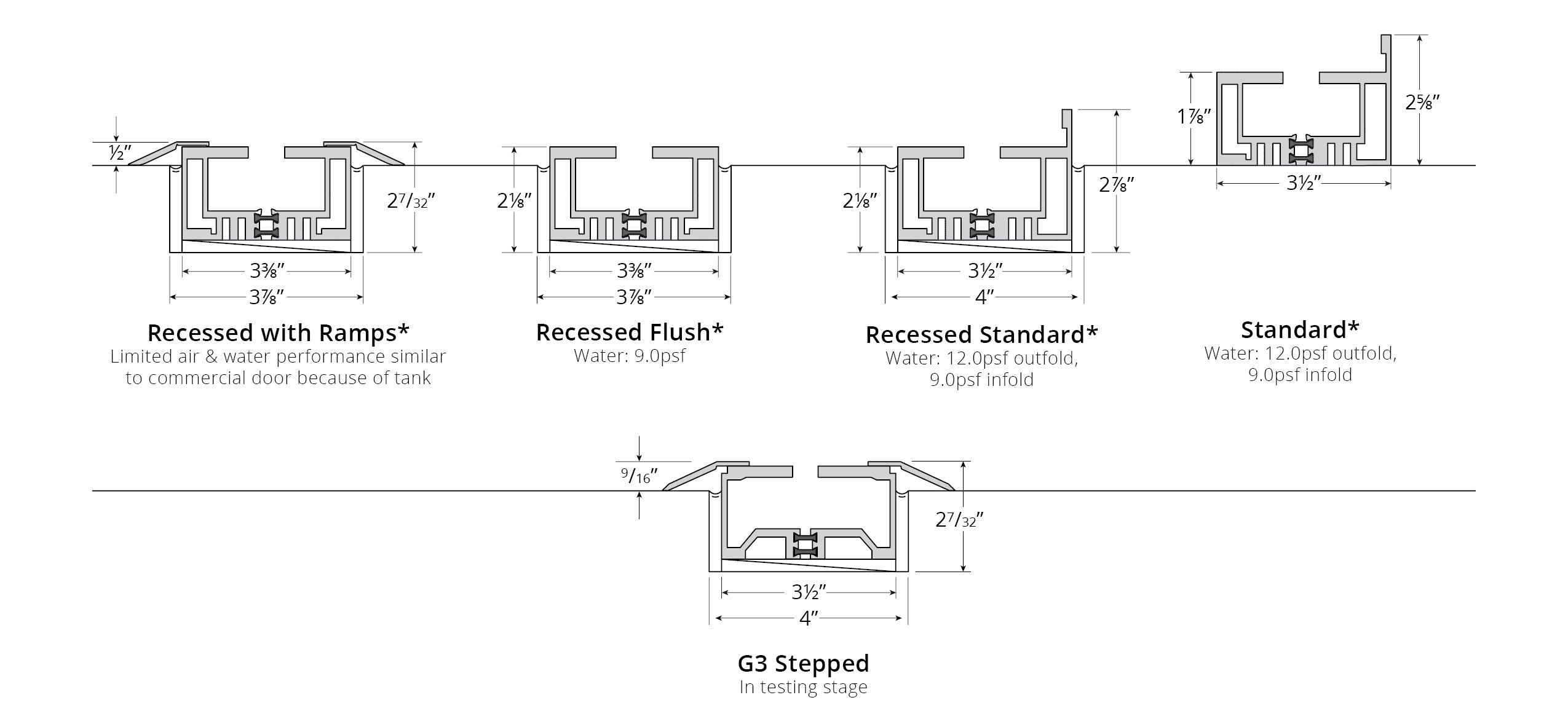

Top & Bottom Load Sills

G3 Recessed with Ramps Sill

Recessed with Ramps*

Limited air & water performance similar to commercial door because of tank

ADA compliant with sill fill

G3 Recessed Flush Sill

Recessed Flush*

Water: 9psf

ADA compliant with sill fill

G3 Recessed Standard Sill

Recessed Standard*

Water: 12psf out-fold, 9psf in-fold

G3 Standard Sill

Standard*

Water: 12psf out-fold, 9psf in-fold

-->
G3 Stepped Sill

G3 Stepped

In testing stage

*Florida Impact Tested Options

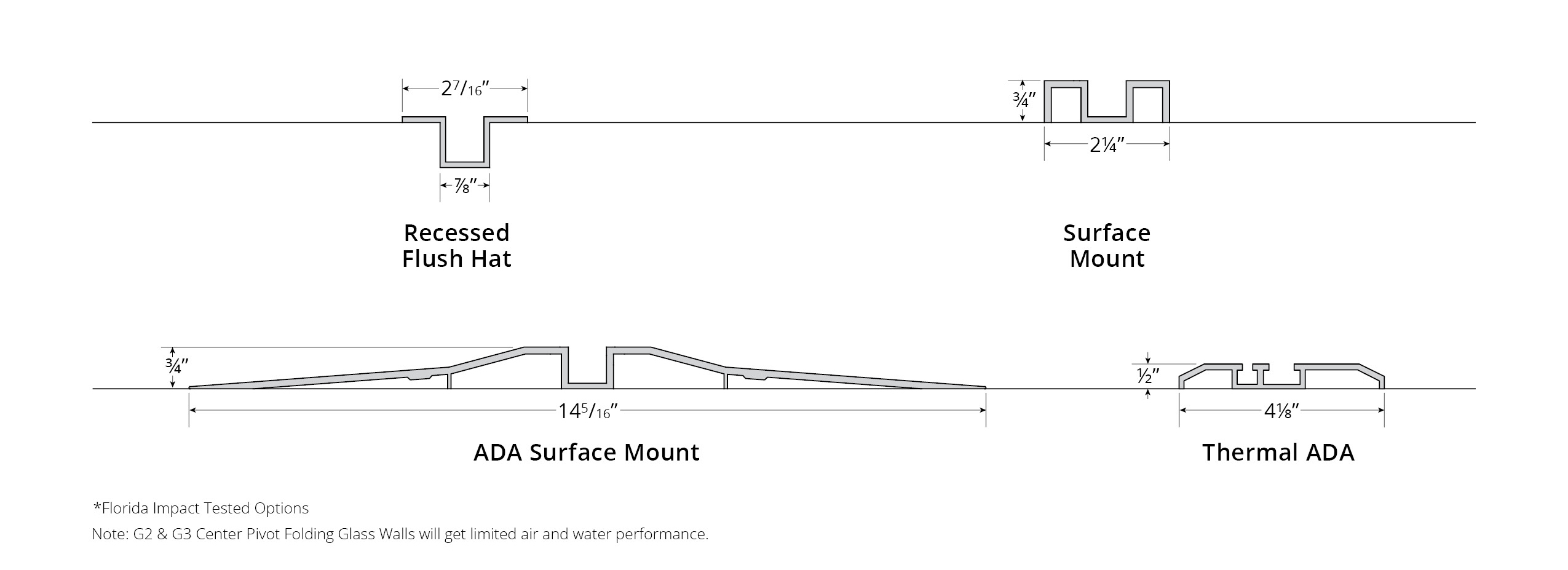

Top Load Only Sills

G2 Recessed Flush Hat Sill

Recessed Flush Hat

Limited air & water performance

ADA compliant with sill fill.

G2 Surface Mount Sill

Surface Mount

Limited air & water performance

G2 Thermal ADA Sill

Thermal ADA

Limited air & water performance

G2 Thermal ADA Sill

Recessed Thermal ADA

Limited air & water performance

G2 ADA Recessed Flush Hat

ADA Recessed Flush Hat

Limited air & water performance

G2 ADA Surface Mount Sill

ADA Surface Mount

Limited air & water performance

*G3 Center Pivot Folding Glass Walls will get limited air and water performance.

Vertical & Horizontal Rails

Head Detail Rail

Head Detail

Standard Thermal Rail

Standard Thermal

Standard Non-Thermal Rail

Standard
Non-Thermal

Narrow Thermal Rail

Narrow Thermal

Extra Narrow Thermal Rail

Extra Narrow Thermal

Stretch Rail

Stretch Rail

10 inch Bottom Rail

10" Bottom Rail

-->

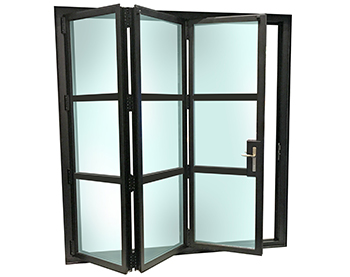

Mullions

(True Divided Lites)

Pleas note: All mullions offered by Solar Innovations® include thermal break, regardless of the system.

Extra Narrow Mullion

Narrow Mullion

Standard Mullion

Jamb Details

Regular G2 Jamb & Frame

Standard G3 Jamb & Frame

Narrow G2 Jamb & Regular Frame

Narrow G3 Jamb & Standard G3 Frame

Narrow G2 Jamb & Frame

Narrow G3 Jamb & Frame

Narrow G2 Jamb & Frame

Extra Narrow G3 Jamb & Frame

Top and bottom horizontals are unable to utilize narrow or extra narrow framing. Options dependent upon desired size and engineering requirements.

Stacked Wall Dimensions

Sandard Jamb (Subtract 15/16" for Narrow Jamb)

2 Panel Standard Jamb Dimensions

2 Panels

3 Panel Standard Jamb Dimensions

3 Panels

4 Panel Standard Jamb Dimensions

4 Panels

5 Panel Standard Jamb Dimensions

5 Panels

6 Panel Standard Jamb Dimensions

6 Panels

7 Panel Standard Jamb Dimensions

7 Panels

8 Panel Standard Jamb Dimensions

8 Panels

Sill Comparison

Folding Glass Wall Sill Type Application Top Load Bottom Load Recessed Surface Mount ADA Compliant Florida Impact Tested Water Performance Max Panel Height Max Frame Width Max Header Deflection
G2 System Download
G2 Recessed with Ramps Interior or Exterior Yes Yes Yes No Yes, with Sill Fill Yes Limited* Varies Varies 3/16"
G2 Recessed Flush Interior or Exterior Yes Yes Yes No Yes, with Sill Fill Yes 9psf Varies Varies 3/16"
G2 Recessed Standard Interior or Exterior Yes Yes Yes No No Yes 12psf Outfold 9psf Infold Varies Varies 3/16"
G2 Standard Interior or Exterior Yes Yes No Yes No Yes 12psf Outfold 9psf Infold Varies Varies 3/16"
G3 System
G3 Recessed with Ramps Interior or Exterior Yes Yes Yes No Yes, with Sill Fill Yes Limited* Varies Varies 3/16"
G3 Recessed Flush Interior or Exterior Yes Yes Yes Yes Yes, with Sill Fill Yes 9psf Varies Varies 3/16"
G3 Recessed Standard Interior or Exterior Yes Yes Yes No No Yes 12psf Outfold 9psf Infold Varies Varies 3/16"
G3 Standard Interior or Exterior Yes Yes No Yes No Yes 12psf Outfold 9psf Infold Varies Varies 3/16"
G3 Recessed with Ramps Interior or Exterior Yes Yes Yes No Yes No Limited* Varies Varies 3/16"
Both G2 and G3 Systems
Recessed Flush Hat Interior or Exterior Yes No Yes No Yes, with Sill Fill No Limited* 10' 6" Varies 3/16"
ADA Recessed Flush Hat Interior or Exterior Yes No Yes No Yes No Limited* 10' Varies 3/16"
Surface Mount Interior or Exterior Yes No No Yes No No Limited* 10' 6" Varies 3/16"
ADA Surface Mount Interior or Exterior Yes No No Yes Yes No Limited* 10' 6" Varies 3/16"
Thermal ADA Interior or Exterior Yes No No Yes Yes No Limited* 8' 16' 3/32"
Recessed Thermal ADA Interior or Exterior Yes No Yes No Yes No Limited* 10' Varies 1/4"
